ГОСТ Р 50077-92

ГОСУДАРСТВЕННЫЙ СТАНДАРТ РОССИЙСКОЙ ФЕДЕРАЦИИ

ПРОФИЛИ ПРЕССОВАННЫЕ
КОСОУГОЛЬНЫЕ УГОЛКОВОГО СЕЧЕНИЯ
ИЗ АЛЮМИНИЕВЫХ И МАГНИЕВЫХ
СПЛАВОВ

СОРТАМЕНТ

ГОССТАНДАРТ РОССИИ

Москва

ГОСУДАРСТВЕННЫЙ СТАНДАРТ РОССИЙСКОЙ ФЕДЕРАЦИИ

ПРОФИЛИ ПРЕССОВАННЫЕ КОСОУГОЛЬНЫЕ
УГОЛКОВОГО СЕЧЕНИЯ ИЗ АЛЮМИНИЕВЫХ
И МАГНИЕВЫХ СПЛАВОВ

Сортамент

Extruded oblique angle section shapes of aluminium
and magnesium alloys.
Dimensions

ГОСТ P
50077-92

Дата введения 01.07.93

Настоящий стандарт устанавливает сортамент прессованных косоугольных профилей уголкового сечения из алюминия, алюминиевых и магниевых сплавов, изготовляемых методом горячего прессования.

1. Профили подразделяют на:

остроугольные;

со срезом наклонной полки, параллельным горизонтальной полке (черт. 1);

со срезом наклонной полки, перпендикулярным сторонам наклонной полке (черт. 2);

тупоугольные;

со срезом наклонной полки, параллельным горизонтальной полке (черт. 3);

со срезом наклонной полки, перпендикулярным сторонам наклонной полки (черт. 4).

2. Номера профилей и их размеры должны соответствовать указанным на черт. 1 - 4 и в табл. 1 - 4.

Таблица 1

Номер профиля

Размеры, мм

Угол между полками град. мин α

Площадь сечения, см2

Диаметр описанной окружности, мм

Теоретическая масса 1 м сплава, кг

H

B

S

S1

R

r

алюминиевого

магниевого

510014

23,0

38,0

4,0

4,0

5,0

1,0

45°00

2,590

40

0,738

0,466

510001

38,7

48,0

3,0

8,0

4,0

-

82°30

4,771

58

1,360

0,859

510002

39,0

48,0

3,0

8,0

4,0

-

88°00

4,796

61

1,367

0,863

510023

40,0

58,0

19,0

7,0

2,5

0,5

78°00

10,436

66

2,974

1,878

510015

40,5

42,5

4,0

7,5

5,0

0,5

85°00

4,551

56

1,297

0,819

510016

42,0

45,0

4,0

12,0

3,5

0,5

82°42

6,551

58

1,867

1,179

510005

45,0

86,0

3,5

5,0

5,0

1,0

84°56

5,758

94

1,641

1,036

510020

61,0

67,0

5,0

8,0

5,0

0,5

72°00

8,122

81

2,315

1,462

510017

65,0

70,0

14,0

10,0

5,0

0,5

83°00

14,763

90

4,207

2,657

510008

65,0

90,0

15,0

25,0

3,0

2,0

79°00

28,019

103

7,986

5,044

510009

65,0

116,0

18,0

25,0

3,0

3,0

79°00

35,727

124

10,182

6,431

510021

67,0

60,0

9,0

5,0

5,0

0,5

81°00

8,699

84

2,479

1,566

510018

70,0

51,0

16,0

20,0

5,0

-

85°36

18,134

84

5,168

3,264

510010

70,0

66,0

13,0

4,0

5,0

1,0

85°30

11,301

93

3,221

2,034

510011

105,0

52,0

5,5

9,0

8,0

-

77°00

10,199

112

2,907

1,836

510013

107,5

52,5

5,5

11,5

8,0

-

77°00

11,497

114

3,277

2,070

Примечания:

1. Значения радиусов r, не приведенные в таблице, должны соответствовать требованиям ГОСТ 8617, ГОСТ 19657.

2. Радиусы притупления острых рамок (r1, r2, r3, r4) должны соответствовать требованиям ГОСТ 8617, ГОСТ 19657.

1

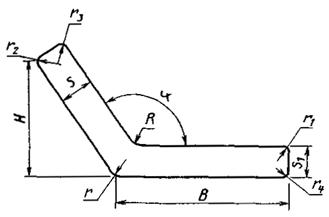

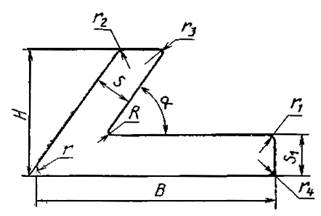

Черт. 1

1

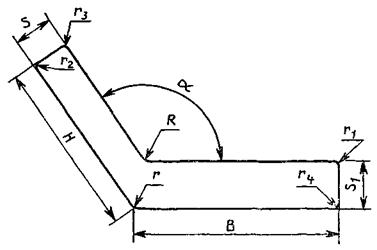

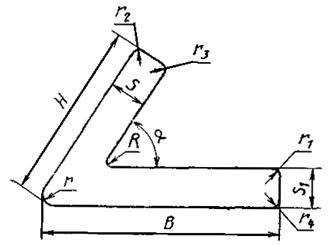

Черт. 2

Таблица 2

Номер профиля

Размеры, мм

Угол между полками, град, мин

Площадь сечения, см2

Диаметр описанной окружности, мм

Теоретическая масса 1 м сплава, кг

H

B

S

S1

R

r

α

алюминиевого

магниевого

510041

15,0

15,0

1,5

1,5

2,0

-

81°30

0,435

20

0,124

0,078

510042

15,0

15,0

1,5

1,5

2,0

-

85°00

0,436

20

0,124

0,078

510043

18,0

18,0

1,0

1,0

2,0

-

60°33

0,357

21

0,102

0,064

510044

20,0

15,0

2,0

2,0

2,0

-

80°00

0,664

23

0,189

0,119

510045

20,0

15,0

1,5

1,5

2,0

-

83°00

0,510

24

0,145

0,092

510046

20,0

18,0

1,5

1,5

2,0

-

87°00

0,556

26

0,158

0,100

510047

20,0

20,0

1,5

1,5

2,0

-

60°00

0,575

23

0,164

0,103

510048

20,0

20,0

1,5

1,5

2,0

-

64°00

0,578

24

0,165

0,104

510049

20,0

20,0

1,5

1,5

2,0

-

69°00

0,581

24

0,165

0,104

510050

20,0

20,0

1,5

1,5

2,0

-

75°00

0,583

25

0,166

0,105

510051

20,0

20,0

1,5

1,5

2,0

-

77°00

0,584

26

0,166

0,105

510052

20,0

20,0

1,5

1,5

2,0

-

80°00

0,585

26

0,167

0,105

510053

20,0

20,0

1,5

1,5

2,0

-

83°00

0,585

27

0,167

0,105

510054

20,0

20,0

1,5

1,5

2,0

-

85°00

0,586

27

0,167

0,105

510055

20,0

20,0

2,0

2,0

2,0

-

75°00

0,760

25

0,217

0,137

510056

20,0

20,0

2,0

2,0

2,0

-

77°30

0,762

26

0,217

0,137

510057

20,0

20,0

2,0

2,0

2,0

-

80°00

0,764

26

0,218

0,137

510058

20,0

20,0

2,0

2,0

2,0

-

83°00

0,766

27

0,218

0,138

510059

23,0

23,0

4,0

3,0

4,0

-

84°00

1,518

31

0,433

0,273

510060

24,6

19,6

1,2

1,2

3,0

-

80°00

0,539

29

0,154

0,097

510061

25,0

15,0

1,0

1,5

2,0

-

71°00

0,467

26

0,133

0,084

510062

25,0

15,0

1,0

1,5

2,0

-

84°00

0,469

28

0,134

0,084

510063

25,0

16,0

1,5

1,5

1,5

0,5

75°00

0,592

27

0,169

0,107

510064

25,0

20,0

1,5

2,5

2,0

-

82°00

0,842

30

0,240

0,152

510065

25,0

20,0

2,0

2,5

3,0

-

73°41

0,962

28

0,274

0,173

510066

25,0

24,0

3,0

4,0

3,5

1,0

86°00

1,609

34

0,458

0,290

510067

25,0

25,0

1,5

1,5

2,0

-

60°00

0,725

29

0,207

0,130

510068

25,0

25,0

1,5

1,5

2,5

-

74°00

0,740

31

0,211

0,133

510069

25,0

25,0

1,5

1,5

2,0

-

77°00

0,734

32

0,209

0,132

510070

25,0

25,0

1,5

1,5

2,0

-

83°00

0,735

33

0,210

0,132

510072

25,0

25,0

1,8

2,4

3,0

-

84°42

1,026

34

0,192

0,185

510073

25,0

25,0

2,0

2,0

4,0

-

55°00

0,977

28

0,279

0,176

510074

25,0

25,0

2,0

2,0

2,0

-

58°00

0,942

29

0,268

0,169

510075

25,0

25,0

2,0

2,0

3,0

-

70°00

0,972

31

0,277

0,175

510338

25,0

25,0

2,0

2,0

2,0

0,5

74°00

0,959

31

0,273

0,173

510076

25,0

25,0

2,0

2,0

2,0

-

77°00

0,962

32

0,274

0,173

510077

25,0

25,0

2,0

2,0

2,0

-

80°00

0,964

33

0,275

0,173

510078

25,0

25,0

2,0

2,0

2,0

-

82°00

0,965

33

0,275

0,174

510079

25,0

25,0

2,0

2,0

2,0

-

84°00

0,966

34

0,275

0,174

510080

25,0

25,0

2,4

2,4

3,2

-

77°54

1,160

32

0,331

0,209

510081

25,0

25,0

2,4

2,4

3,2

-

85°06

1,163

34

0,332

0,209

510082

25,0

25,0

2,5

2,5

2,0

-

81°00

1,188

33

0,339

0,214

510083

25,0

25,0

3,2

3,2

3,2

-

80°00

1,507

33

0,430

0,271

510084

25,3

14,2

2,0

2,0

2,0

4,0

80°45

0,708

27

0,202

0,127

510085

27,4

26,4

2,0

6,0

3,0

2,0

73°00

1,961

33

0,559

0,353

510086

29,0

25,0

2,4

2,4

2,4

-

67°30

1,229

33

0,350

0,221

510087

29,2

29,2

2,5

2,5

3,0

2,0

71°00

1,389

36

0,396

0,250

510088

30,0

18,0

2,0

1,5

2,0

-

78°00

0,845

32

0,241

0,152

510089

30,0

20,0

1,5

2,0

2,0

-

77°00

0,824

33

0,235

0,148

510090

30,0

20,0

1,5

2,0

2,0

-

81°00

0,826

34

0,235

0,149

510091

30,0

20,0

2,5

2,0

3,0

-

82°40

1,118

34

0,319

0,201

510092

30,0

25,0

3,0

2,5

3,0

-

78°00

1,459

36

0,416

0,263

510093

30,0

25,0

5,0

4,0

5,0

-

85°30

2,347

38

0,669

0,422

510094

30,0

27,0

3,0

5,0

5,0

-

84°00

2,147

38

0,612

0,386

510095

30,0

27,0

3,0

5,0

5,0

-

87°30

2,152

40

0,613

0,387

510096

30,0

30,0

1,5

1,5

2,5

-

55°30

0,879

34

0,250

0,158

510097

30,0

30,0

2,0

2,0

2,0

-

77°54

1,163

39

0,331

0,209

510098

30,0

30,0

2,0

2,0

2,0

-

79°15

1,163

39

0,332

0,209

510099

30,0

30,0

2,0

2,0

2,0

-

83°00

1,166

40

0,332

0,210

510100

30,0

30,0

3,0

3,0

3,0

-

70°00

1,701

37

0,485

0,306

510101

30,0

30,0

3,0

3,0

3,0

-

80°00

1,719

39

0,490

0,309

510103

30,0

30,0

3,0

3,0

3,0

-

85°00

1,720

40

0,482

0,309

510104

30,0

30,0

4,0

3,0

3,0

-

85°00

1,992

41

0,568

0,358

510105

31,0

25,0

2,5

4,8

3,0

-

82°00

1,858

38

0,530

0,334

510106

31,0

25,0

2,5

4,8

3,0

-

86°00

1,867

39

0,532

0,336

510107

31,4

24,9

2,6

2,6

2,5

2,5

45°00

1,301

32

0,371

0,234

510108

32,0

24,0

3,0

4,0

3,5

-

85°00

1,820

38

0,519

0,328

510109

32,0

25,0

2,3

2,3

2,3

-

70°00

1,253

35

0,357

0,226

510339

32,0

30,5

3,0

5,0

4,0

-

80°00

2,349

41

0,669

0,423

510110

32,0

32,0

4,0

6,0

4,0

1,0

84°00

2,971

43

0,847

0,535

510111

34,0

29,1

3,0

3,0

6,0

1,5

74°00

1,880

40

0,536

0,338

510112

34,5

29,5

3,0

3,0

6,0

1,5

74°00

1,907

40

0,544

0,343

510113

35,0

25,0

3,0

4,0

4,0

-

70°00

1,929

38

0,550

0,347

510114

35,0

25,0

3,0

4,0

4,0

0,5

84°29

1,959

41

0,558

0,353

510340

35,0

30,0

4,3

5,0

4,0

-

87°30

2,819

45

0,803

0,507

510386

35,0

32,0

3,0

6,0

4,0

0,5

78°00

2,785

43

0,794

0,501

510115

35,0

35,0

2,5

2,5

3,0

-

83°00

1,703

47

0,485

0,307

510116

35,0

35,0

4,0

4,0

4,0

0,5

70°00

2,623

43

0,748

0,472

510377

35,0

35,0

4,0

5,5

5,0

1,0

75°00

3,110

44

0,886

0,560

510117

35,0

35,0

5,0

3,5

3,0

-

86°30

2,811

48

0,801

0,506

510118

35,2

35,0

4,0

3,0

4,0

0,5

84°30

2,367

47

0,675

0,426

510119

35,4

35,0

4,0

3,0

4,0

0,5

82°00

2,371

47

0,676

0,427

510120

36,0

25,0

2,4

2,4

3,0

-

84°00

1,424

42

0,406

0,256

510121

36,0

25,0

3,0

3,0

3,0

0,5

77°40

1,745

40

0,497

0,314

510122

36,0

35,0

5,0

3,0

3,0

-

84°00

2,705

48

0,771

0,487

510123

36,0

36,0

6,0

6,0

4,0

-

85°00

3,968

49

1,131

0,714

510124

37,4

24,0

3,0

4,0

4,0

2,0

81°25

1,976

42

0,563

0,356

510125

38,0

25,0

2,4

2,4

2,4

-

82°00

1,462

43

0,417

0,263

510395

38,0

28,0

7,5

6,0 1

2,5

0,5

85°00

4,053

45

1,155

0,730

510391

38,0

32,0

3,0

3,0

3,0

-

78°00

2,016

45

0,574

0,363

510126

38,0

32,0

3,0

3,0

3,0

0,5

80°00

2,018

46

0,575

0,363

510127

38,0

32,0

3,0

3,0

3,0

-

81°40

2,021

47

0,576

0,364

510376

38,0

32,0

3,0

3,0

3,0

-

84°00

2,024

47

0,577

0,364

510128

38,0

35,0

5,0

2,5

3,0

-

85°00

2,659

50

0,758

0,479

510132

38,5

37,0

10,5

12,5

5,0

0,5

85°40

7,313

52

2,084

1,316

510133

38,6

38,6

2,5

2,5

3,0

2,0

60°37

1,840

48

0,525

0,331

510134

39,2

29,2

2,5

2,5

3,0

2,0

71°00

1,639

43

0,467

0,295

510135

39,2

39,2

3,0

3,0

3,0

2,0

71°45

2,244

48

0,640

0,404

510136

40,0

20,0

2,0

3,0

4,0

0,5

78°35

1,373

42

0,391

0,247

510137

40,0

25,0

3,0

4,0

4,0

0,5

79°00

2,099

44

0,598

0,378

510138

40,0

25,0

4,0

3,0

4,0

0,5

79°00

2,249

44

0,641

0,405

510139

40,0

25,0

4,0

3,0

4,0

-

87°00

2,262

46

0,645

0,407

510140

40,0

28,0

2,5

5,0

3,0

-

86°00

2,286

47

0,652

0,411

510141

40,0

28,0

2,5

5,0

3,0

-

87°40

2,290

48

0,653

0,412

510142

40,0

30,0

1,5

1,5

2,0

-

66°00

1,029

43

0,293

0,185

510143

40,0

30,0

3,0

4,0

4,0

0,5

74°16

2,290

45

0,653

0,412

510341

40,0

30,0

3,0

5,0

3,0

-

85°54

2,560

48

0,730

0,461

510342

40,0

30,0

4,0

7,0

4,0

-

87°35

3,444

49

0,982

0,620

510387

40,0

35,0

2,0

3,5

4,0

-

88°00

1,989

52

0,567

0,358

510343

40,0

36,0

4,5

8,0

2,5

-

80°00

4,258

50

1,214

0,766

510144

40,0

40,0

2,5

2,5

5,0

0,5

72°00

1,994

49

0,568

0,359

510145

40,0

40,0

2,5

2,5

2,5

-

84°00

1,947

54

0,555

0,350

510344

40 0

40,0

3,0

3,0

5,0

-

57°20

2,321

64

0,662

0,418

510146

40,0

40,0

3,0

3,0

4,0

-

66°00

2,315

48

0,660

0,417

510147

40,0

40,0

3,0

3,0

4,0

-

75°00

2,333

50

0,665

0,420

510148

40,0

40,0

3,0

3,0

2,0

0,5

79°00

2,302

52

0,656

0,414

510149

40,0

40,0

3,0

3,0

2,0

-

84°00

2,311

54

0,658

0,416

510150

40,0

40,0

3,5

3,5

3,5

0,5

84°00

2,695

54

0,768

0,485

510151

40,0

40,0

4,0

4,0

4,0

0,5

78°00

3,049

51

0,869

0,549

510152

40,2

30,0

2,5

4,0

5,0

-

76°52

2,154

46

0,614

0,388

510153

40,2

38,0

10,0

4,0

5,0

1,0

85°00

5,149

53

1,467

0,927

510154

41,0

40,0

12,0

5,0

5,0

0,5

82°00

6,263

54

1,785

1,127

510155

42,0

25,0

3,0

6,0

4,0

1,0

87°30

2,606

48

0,743

0,469

510156

42,0

30,0

3,0

4,0

4,0

1,0

87°50

2,371

51

0,676

0,427

510157

42,0

31,0

4,0

12,0

4,0

-

82°00

4,847

49

1,381

0,872

510158

42,0

36,0

4,5

9,5

3,0

0,5

80°00

4,804

51

1,369

0,865

510159

42,0

40,0

5,0

4,0

5,0

1,0

78°00

3,523

53

1,004

0,634

510160

42,8

30,0

4,0

8,0

4,0

-

87°35

3,813

51

1,087

0,686

510161

43,0

38,0

2,5

2,5

2,5

-

77°30

1,966

52

0,560

0,354

510162

43,0

40,0

7,5

6,5

5,0

-

86°15

5,366

57

1,529

0,966

510345

44,0

38,0

7,0

3,2

5,0

-

86°00

4,113

56

1,172

0,740

510163

45,0

28,0

2,0

2,0

2,5

0,5

80°00

1,430

49

0,407

0,257

510164

45,0

28,0

2,0

2,0

2,4

-

82°00

1,430

50

0,407

0,257

510165

45,0

35,0

2,5

2,5

3,0

-

83°00

1,933

54

0,557

0,353

510166

45,0

40,0

3,5

3,0

4,0

0,5

74°20

2,686

54

0,766

0,483

510167

46,0

45,0

4,0

7,0

3,0

-

85°19

4,705

62

1,341

0,847

510168

47,0

35,0

2,5

6,0

3,5

-

88°50

3,149

58

0,897

0,567

510169

47,0

45,0

3,0

3,5

5,0

-

80°58

2,934

61

0,836

0,528

510172

48,0

40,2

5,0

16,0

4,0

0,5

84°00

7,921

60

2,258

1,426

510173

49,25

39,25

3,0

3,0

3,0

2,0

71°45

2,550

55

0,727

0,459

510174

49,7

24,9

2,6

2,6

2,5

2,5

45°00

1,776

52

0,506

0,320

510175

50,0

30,0

3,0

3,0

3,0

1,5

78°30

2,310

54

0,658

0416

510176

50,0

30,0

4,0

3,0

4,0

-

82°00

2,805

55

0,799

0,505

510177

50,0

30,0

3,5

4,0

5,0

-

80°00

2,833

54

0,814

0,514

510346

50,0

32,0

2,5

2,5

3,0

0,5

65°00

1,982

51

0,565

0,357

510347

50,0

32,0

2,5

2,5

3,0

0,5

74°30

1,996

54

0,569

0,359

510348

50,0

32,0

6,0

3,0

3,0

-

77°00

3,751

54

1,069

0,675

510178

50,0

35,0

2,5

5,0

5,0

-

87°00

2,926

60

0,834

0,527

510179

50,0

36,0

3,0

4,0

4,0

-

84°10

2,848

59

0,812

0,513

510180

50,0

45,0

4,0

7,0

5,0

-

85°50

4,909

65

1,399

0,884

510349

50,0

45,0

12,0

5,0

4,0

-

88°30

7,665

66

2,184

1,380

510181

50,0

47,0

9,0

12,0

4,0

1,0

81°00

8,910

64

2,539

1,604

510182

50,0

48,0

7,0

7,0

8,0

-

79°50

6,463

64

1,842

1,163

510183

50,0

50,0

3,0

3,0

4,0

-

78°00

2,936

64

0,837

0,529

510184

50,0

50,0

4,0

4,0

4,0

-

58°00

3,766

57

1,073

0,678

510185

50,0

50,0

4,0

4,0

4,0

-

66°00

3,808

60

1,085

0,685

510186

50,0

50,0

4,0

4,0

4,0

-

75°00

3,841

62

1,095

0,691

510187

50,0

50,0

5,0

5,0

5,0

0,5

72°00

4,736

62

1,350

0,852

510188

50,0

50,0

5,0

5,0

5,0

0,5

85°30

4,793

68

1,366

0,863

510189

50,0

50,0

5,0

5,0

5,0

0,5

87°45

4,799

69

1,368

0,864

510190

50,0

50,0

6,0

6,0

5,0

0,5

87°56

5,686

69

1,621

1,024

510191

50,0

50,0

6,5

6,5

6,0

-

87°50

6,148

69

1,752

1,107

510192

51,0

37,0

3,0

4,0

2,5

-

75°00

2,872

57

0,818

0,517

510193

52,0

28,0

2,5

5,0

3,0

-

87°40

2,590

58

0,738

0,466

510194

52,0

42,0

3,5

3,5

5,0

0,5

84°30

3,220

64

0,918

0,580

510195

52,0

42,0

3,5

3,5

5,0

0,5

82°30

3,219

63

0,917

0,579

510196

52,0

43,0

4,0

4,0

4,0

0,5

83°20

3,663

64

1,044

0,659

510197

52,0

43,0

4,0

4,0

4,0

0,5

88°40

3,673

67

1,047

0,661

510198

52,0

50,0

4,0

8,0

8,0

-

65°00

5,757

61

1,641

1,036

510199

53,0

50,0

6,5

14,0

6,0

-

85°00

9,519

70

2,713

1,713

510200

54,5

53,0

6,0

3,5

3,5

0,5

87°00

4,931

74

1,405

0,888

510201

55,0

25,0

2,5

2,5

3,0

-

67°00

1,936

55

0,552

0,348

510202

55,0

35,0

3,5

3,5

4,0

0,5

69°45

3,027

56

0,863

0,545

510203

55,0

35,0

5,0

9,0

4,0

-

85°27

5,447

63

1,552

0,980

510205

55,0

41,0

6,5

12,0

6,5

-

82°25

7,701

65

2,195

1,386

510206

55,0

45,0

4,0

10,0

4,0

-

89°02

6,326

70

1,803

1,139

510207

55,0

45,0

4,0

10,0

5,0

1,0

88°40

6,342

70

1,807

1,142

510208

55,0

46,0

6,0

5,0

4,0

3,0

85°00

5,290

69

1,508

0,952

510209

55,0

47,0

4,0

6,0

5,0

5,0

73°00

4,690

64

1,337

0,844

510210

55,0

47,0

12,0

8,0

5,0

0,5

84°00

9,350

69

2,665

1,683

510211

55,8

44,8

5,0

3,5

4,0

1,0

77°30

4,183

65

1,192

0,753

510212

55,9

44,9

4,0

3,5

4,0

1,0

86°20

3,695

70

1,053

0,665

510213

56,5

49,0

5,0

3,5

4,0

-

77°40

4,369

68

1,245

0,786

510214

56,5

49,0

5,0

4,0

4,0

0,5

87°23

4,613

73

1,315

0,830

510215

56,5

49,0

6,0

4,0

4,0

-

86°40

5,134

73

1,463

0,924

510216

57,0

54,0

9,0

4,0

5,0

-

84°30

6,947

75

1,980

1,251

510217

57,0

56,0

8,0

5,0

5,0

0,5

86°58

6,997

78

1,994

1,260

510218

58,0

28,0

2,0

1,5

3,0

-

73°00

1,568

59

0,447

0,282

510350

58,0

35,0

3,0

3,0

3,0

-

75°00

2,720

60

0,762

0,489

510219

58,0

48,0

5,5

4,0

4,0

1,0

86°00

4,910

73

1,399

0,884

510220

58,0

48,0

6,5

4,0

4,0

1,0

76°30

5,399

68

1,539

0,972

510221

58,2

48,0

17,0

17,0

4,0

-

85°13

14,953

73

4,262

2,692

510222

58,3

38,3

2,5

3,0

3,0

2,0

56°00

2,482

59

0,707

0,447

510223

58,3

58,3

4,0

4,0

3,0

2,0

56°00

4,380

66

1,248

0,788

510224

59,0

57,0

5,0

11,0

5,0

0,5

86°58

8,692

80

2,477

1,565

510225

59,0

57,0

5,0

11,0

5,0

0,5

88°00

8,701

81

2,480

1,566

510226

60,0

42,0

4,0

10,0

6,0

-

73°00

6,119

65

1,744

1,101

510227

60,0

42,0

4,0

10,0

6,0

-

78°00

6,175

67

1,760

1,111

510228

60,0

42,0

10,0

10,0

6,0

-

72°00

8,940

65

2,548

1,609

510229

60,0

46,0

5,0

19,0

6,0

-

70°00

10,145

66

2,891

1,826

510351

60,0

59,0

8,0

7,0

6,0

-

88°00

8,433

83

2,403

1,518

510230

60,0

60,0

5,0

50

4,0

-

58°00

5,604

69

1,597

1,009

510382

60,0

60,0

8,5

7,0

6,0

0,5

71°00

8,578

74

2,445

1,544

510231

61,2

40,0

4,0

8,0

4,0

0,5

78°30

5,287

67

1,507

0,952

510232

61,2

44,0

3,5

6,5

4,0

0,5

62°00

4,653

64

1,326

0,838

510233

62,0

30,0

2,0

3,0

3,0

-

80°24

2,094

65

0,597

0,377

510234

62,0

53,2

27,0

7,0

5,0

1,0

85°00

18,288

78

5,212

3,292

510235

64,0

39,0

4,0

24,0

5,0

-

85°40

10,797

73

3,077

1,943

510236

64,0

50,0

6,0

4,0

4,0

1,0

87°35

5,625

80

1,603

1,012

510237

64,9

39,9

3,0

2,0

3,0

2,0

86°30

2,693

74

0,678

0,485

510238

65,0

35,0

4,0

4,0

3,0

0,5

70°00

3,800

66

1,083

0,684

510240

65,0

35,0

4,0

6,0

4,0

-

77°28

4,445

68

1,267

0,800

510378

65,0

38,0

5,0

13,0

4,0

0,5

53°15

6,708

65

1,912

1,207

510241

65,0

41,0

9,5

31,0

5,0

1,0

85°30

15,578

74

4,440

2,804

510242

65,0

42,0

5,0

9,0

5,0

-

68°2

6,420

68

1,830

1,156

510243

65,0

42,0

6,0

5,0

3,0

-

89°00

5,715

77

1,629

1,029

510352

65,0

45,0

7,0

5,0

4,0

1,0

78°40

6,414

73

1,828

1,154

510353

65,0

51,0

13,5

7,0

5,0

0,5

70°51

11,026,

72

3,142

1,985

510379

65,0

53,0

5,0

13,0

4,0

0,5

53°15

8,658

67

2,467

1,558

510380

65,0

53,0

5,0

13,0

4,0

0,5

60°37

8,903

69

2,537

1,602

510244

65,0

58,0

2,5

2,5

2,5

-

74°00

3,012

77

0,858

0,542

510245

65,0

65,0

3,5

5,0

5,0

-

78°00

5,381

84

1,534

0,969

510354

65,0

65,0

10,0

10,0

5,0

-

66°00

11,545

78

3,290

2,078

510246

67,0

42,0

7,0

25,0

5,0

0,5

84°40

13,183

76

3,757

2,373

510355

67,0

50,0

5,0

4,0

5,0

-

86°00

5,197

81

1,481

0,935

510356

67,0

52,0

6,0

4,0

5,0

-

79°50

5,883

78

1,677

1,059

510357

67,0

52,0

6,0

5,0

4,0

-

81°00

6,313

79

1,799

1,136

510247

67,0

53,0

5,5

4,0

5,0

-

82°00

5,619

80

1,601

1,011

510248

67,0

56,0

5,5

4,0

5,0

-

80°00

5,732

81

1,634

1,032

510249

67,0

56,0

6,0

5,0

5,0

1,0

80°00

6,530

81

1,861

1,175

510250

67,0

58,0

4,5

4,0

5,0

-

79°00

5,189

81

1,479

0,934

510251

67,0

58,0

5,0

5,0

50

1,0

79°00

6,017

81

1,715

1,083

510252

67,0

65,0

12,0

14,0

5,0

-

87°51

15,455

92

4,405

2,782

510374

68,0

22,0

2,0

2,0

30

0,5

87°30

1,779

71

0,507

0,320

510389

68,0

23,0

2,0

8,0

2,0

-

85°00

3,020

70

0,861

0,544

510253

68,0

35,0

10,5

4,0

4,0

0,5

86°00

8,114

74

2,312

1,460

510254

68,0

53,0

5,5

4,0

5,0

-

81°30

5,674

81

1,617

1,021

510255

68,0

53,0

7,0

5,0

5,0

1,0

82°00

7,070

81

2,015

1,273

510256

68,0

56,0

5,0

4,0

5,0

-

87°00

5,489

86

1,564

0,988

510257

68,0

56,0

5,0

5,0

5,0

1,0

87°00

5,994

86

1,708

1,079

510258

68,0

56,0

6,0

4,0

5,0

-

85°30

6,123

85

1,745

1,102

510259

68,0

56,0

6,0

5,0

5,0

1,0

85°30

6,616

85

1,886

1,191

510260

68,0

61,0

8,0

5,0

5,0

0,5

80°50

8,085

85

2,304

1,455

510261

68,0

62,0

7,0

5,0

5,0

0,5

72°00

7,452

81

2,124

1,341

510262

69,0

52,0

6,0

4,5

5,0

-

66°15

6,146

74

1,752

1,106

510263

70,0

20,0

4,5

4,5

8,0

3,5

30°00

3,418

107

0,974

0,615

510264

70,0

55,0

4,0

4,0

4,0

1,0

85°50

4,866

86

1,387

0,876

510265

70,0

55,0

5,0

4,0-

4,0

1,0

75°50

5,489

80

1,564

0,988

510266

70,0

55,0

5,0

4,0

4,0

1,0

80°00

5,504

82

1,569

0,991

510267

70,0

55,0

5,0

4,0

4,0

1,0

85°50

5,523

86

1,574

0,994

510268

70,0

55,0

7,0

4,0

5,0

1,0

79°50

6,828

82

1,946

1,229

510269

70,0

55,0

8,0

4,0

4,0

1,0

75°40

7,415

80

2,113

1,335

510270

70,0

55,0

8,0

4,0

5,0

1,0

86°30

7,514

87

2,142

1,353

510271

70,0

55,0

8,0

5,0

5,0

1,0

86°30

7,981

87

2,275

1,437

510272

70,0

55,0

9,0

4,0

4,0

1,0

80°30

8,097

83

2,308

1,457

510273

70,0

55,0

9,0

5,0

5,0

1,0

79°50

8,569

83

2,442

1,542

510274

70,0

55,0

11,0

5,0

5,0

1,0

73°00

9,728

79

2,773

1,751

510275

70,0

55,0

12,0

5,0

5,0

1,0

81°00

10,476

83

2,986

1,886

510276

70,0

60,0

6,0

8,0

5,0

-

88°41

8,566

91

2,441

1,542

510392

70,0

60,0

7,5

7,5

3,0

1,0

78°00

9,079

84

2,588

1,634

510358

70,0

65,0

10,0

9,0

5,0

-

81°50

11,882

89

3,386

2,139

510359

70,0

65,0

14,0

9,0

5,0

1,0

89°20

14,427

95

4,112

2,597

510277

70,0

70,0

6,0

6,0

6,0

0,5

78°00

8,062

90

2,298

1,451

510360

70,0

70,0

6,0

6,0

5,0

0,5

88°45

8,089

98

2,305

1,456

510361

70,0

70,0

6,0

12,0

5,0

1,0

75°30

11,699

89

3,334

2,106

510278

70,0

70,0

8,0

8,0

6,0

0,5

75°00

10,477

88

2,986

1,886

510279

70,0

70,0

9,0

12,0

5,0

-

84°00

13,561

94

3,865

2,441

510362

70,5

70,0

8,0

10,0

4,0

-

78°42

11,708

91

3,337

2,107

510363

71,0

52,0

6,5

6,0

5,0

0,5

79°00

7,334

81

2,090

1,320

510364

71,0

53,0

9,0

8,0

5,0

0,5

80°00

9,842

82

2,805

1,772

510365

71,0

53,0

9,0

8,0

5,0

0,5

82°30

9,877

84

2,815

1,778

510366

71,0

54,0

5,0

4,0

5,0

0,5

87°00

5,558

87

1,584

1,000

510367

71,0

54,0

9,0

8,0

5,0

0,5

81°30

9,943

84

2,834

1,790

510368

71,0

54,0

9,0

8,0

5,0

0,5

85°30

9,994

86

2,848

1,799

510280

71,4

20,7

3,4

3,4

3,0

6,4

45°00

2,752

83

0,784

0,495

510281

72,0

42,0

6,0

10,0

5,0

-

86°04

7,934

81

2,261

1,428

510369

72,0

47,8

8,0

5,0

5,0

-

83°30

7,764

82

2,213

1,398

510282

72,0

71,0

10,0

15,0

5,0

-

87°00

16,323

99

4,652

2,938

510283

73,0

42,0

3,0

4,0

2,5

-

75°00

3,732

77

1,064

0,672

510284

73,0

47,0

3,0

4,0

2,5

-

75°00

3,932

79

1,121

0,708

510285

74,0

58,0

2,5

2,5

2,5

-

74°00

3,237

84

0,922

0,583

510286

74,0

59,0

2,5

2,5

2,5

-

74°00

3,262

84

0,930

0,587

510287

74,0

70,5

4,0

6,0

5,0

0,5

84°25

6,988

98

1,992

1,258

510288

74,5

72,0

4,0

9,0

5,0

-

86°25

9,131

101

2,602

1,644

510289

75,0

30,0

4,0

4,0

4,0

-

80°00

4,055

77

1,156

0,730

510290

75,0

35,2

4,5

4,5

5,0

-

83°30

4,799

80

1,368

0,864

510291

75,0

40,0

5,0

5,0

5,0

0,5

68°00

5,462

76

1,557

0,983

510292

75,0

47,0

4,0

3,0

8,0

0,5

79°00

4,450

82

1,268

0,801

510293

75,0

50,0

5,0

5,0

5,0

-

84°18

6,039

86

1,721

1,087

510370

75,0

50,0

9,0

5,0

4,0

-

81°00

8,755

84

2,495

1,576

510294

75,0

50,0

10,0

10,0

5,0

0,5

79°14

11,364

83

3,239

2,046

510295

75,0

55,0

6,0

6,0

4,0

1,0

84°00

7,439

89

2,120

1,339

510296

75,0

55,0

6,0

6,0

4,0

1,0

87°30

7,460

91

2,126

1,343

510393

75,0

60;0

4,0

6,5

5,0

1,0

78°00

6,644

88

1,893

1,196

510297

75,0

65,0

7,0

4,0

5,0

0,5

89°14

7,621

99

2,172

1,372

510298

75,0

72,0

11,0

20,0

5,0

0,5

87°00

20,370

101

5,805

3,667

510299

75,0

75,0

6,0

6,0

6,0

-

71°00

8,613

92

2,455

1,550

510300

75,0

75,0

10,0

10,0

8,0

-

81°00

14,009

99

3,993

2,522

510301

75,0

75,0

10,0

10,0

8,0

1,0

89°00

14,123

105

4,025

2,542

510383

75,0

75,0

13,0

10,0

5,0

0,5

89°00

15,982

105

4,555

2,877

510302

76,0

53,0

16,0

19,0

5,0

0,5

88°34

19,169

92

5,463

3,450

510303

76,0

74,0

9,0

14,0

5,0

1,0

83°45

15,846

101

4,516

2,852

510304

78,0

68,0

5,0

5,0

3,0

2,0

53°15

6,818

82

1,943

1,227

510305

80,0

37,0

4,0

4,0

3,0

5,0

65°00

4,375

80

1,247

0,787

510306

81,0

43,0

2,5

2,5

4,0

-

60°00

3,047

81

0 868

0,548

510307

81,0

77,0

18,0

11,0

5,0

1,0

79°50

20,710

103

5,902

3,728

510308

81,0

81,0

10,0

10,0

5,0

0,5

40°00

13,525

86

3,855

2,435

510309

82,0

44 5

3,5

4,0

5,0

-

80°58

4,558

88

1,299

0,820

510310

82,0

60,0

20,0

6,0

5,0

-

82°58

18,591

96

5,298

3,346

510311

84,0

50,0

5,0

8,0

3,0

3,0

55°00

7,400

84

2,109

1,332

510313

86,0

75,0

22,0

10,0

5,0

0,5

87°42

24,160

112

6,886

4,349

510314

90,0

50,0

10,0

6,0

5,0

1,0

88°50

11,442

102

3,261

2,060

510315

90,0

64,0

8,0

7,0

5,0

-

89°00

11,166

110

3,182

2,010

510316

90,0

75,0

11,0

10,0

8,0

1,0

89°00

16,421

116

4,680

2,956

510317

90,0

75,0

12,0

10,0

8,0

1,0

80°50

17,070

109

4,865

3,073

510371

90,0

81,0

11,0

22,0

5,0

-

79°50

24,793

112

7,066

4,463

510318

90,0

85,0

6,0

36,0

5,0

-

79°30

32,642

114

9,303

5,876

510319

98,5

45,0

5,0

13,5

5,0

0,5

88°00

10,346

107

2,949

1,862

510320

99,0

75,3

32,0

20,0

5,0

-

85°00

39,756

120

11,331

7,156

510321

100,0

70,0

23,0

6,0

5,0

1,0

89°10

25,832

121

7,362

4,650

510372

100,0

75,0

7,0

7,0

5,0

0,5

75°00

11,688

112

3,331

2,104

510322

102,0

60,0

6,5

14,0

6,5

-

85°00

14,120

114

4,024

2,542

510323

102,0

77,0

10,0

20,0

5,0

1,0

87°47

23,559

126

6,714

4,241

510324

105,0

85,0

39,5

19,0

5,0

-

82°00

48,765

127

13,898

8,778

510325

106,0

90,0

36,0

6,0

5,0

-

79°00

40,138

128

11,439

7,225

510326

108,0

102,0

12,0

21,0

15,0

-

89°00

32,311

147

9,209

5,816

510327

110,0

45,0

4,0

10,0

6,0

0,5

88°40

8,569

118

2,442

1,542

510328

110,0

83,0

41,5

17,0

5,0

-

86°00

52,046

133

14,833

9,368

510329

110,0

90,0

48,0

30,0

5,0

-

86°00

64,306

138

18,327

11,575

510330

110,0

110,0

10,0

10,0

5,0

2,0

60°00

20,340

127

5,797

3,661

510331

114,0

60,0

15,0

14,0

10,0

1,0

67°40

22,702

115

6,470

4,086

510333

115,0

90,0

43,0

18,0

5,0

-

80°00

55,946

135

15,945

10,070

510334

118,0

33,0

4,5

7,5

6,0

-

84°00

7,500

120

2,137

1,350

510336

124,0

78,0

28,0

15,0

5,0

3,0

88°54

42,159

145

12,015

7,589

510384

192,0

58,0

6,0

6,0

4,0

0,5

63°00

14,466

195

4,123

2,604

510337

288,0

77,1

8,0

11,0

6,0

3,0

55°16

29,901

307

8,522

5,382

Примечания:

1. Значения радиусов r, не приведенные в таблице, должны соответствовать, требованиям ГОСТ 8617, ГОСТ 19657.

2. Радиусы притупления острых кромок (r1, r2, r3, r4) должны соответствовать требованиям ГОСТ 8617, ГОСТ 19657.

1

Черт. 3

Черт. 4

Таблица 3

Номер профиля

Размеры, мм

Угол между полками, град. мин

Площадь сечения, см2

Диаметр описанной окружности, мм

Теоретическая масса 1 м сплава, кг

H

B

S

S1

R

r

α

алюминиевого

магниевого

510501

14,9

25,0

1,0

1,5

2,0

-

95°00

0,517

30

0,147

0,093

510502

17,5

32,0

5,5

3,5

4,0

-

117°32

1,999

20

0,570

0,360

510503

20,0

20,0

2,0

3,0

4,0

5,0

116°00

1,010

36

0,288

0,182

510504

20,0

55,0

3,0

2,0

2,0

-

92°00

1,649

59

0,470

0,297

510505

20,0

64,0

3,0

2,0

2,0

-

92°00

1,829

68

0,521

0,329

510506

25,0

27,0

5,0

3,0

3,0

-

106°30

1,974

43

0,562

0,355

510507

25,0

45,5

4,5

3,0

5,0

0,5

94°50

2,406

54

0,686

0,433

510508

25,0

32,0

6,0

4,0

3,0

5,0

98°00

2,542

43

0,724

0,458

510509

29,1

45,0

3,5

4,0

4,0

0,5

110°00

2,761

58

0,787

0,497

510510

29,2

20,0

3,0

5,0

3,0

-

113°30

1,840

44

0,524

0,331

510511

30,0

18,0

2,0

1,5

2,0

-

92°30

0,849

36

0,242

0,153

510512

30,0

18,0

2,0

1,5

2,0

-

98°00

0,853

37

0,243

0,153

510513

30,0

18,0

2,0

2,0

2,0

-

98°00

0,934

37

0,266

0,168

510514

30,0

25,0

3,0

3,0

5,0

-

96°40

1,610

41

0,459

0,290

510561

30,0

30,0

2,5

6,5

3,0

0,5

102°00

2,603

47

0,742

0,469

510515

31,0

35,0

6,2

3,2

4,0

5,0

92°30

2,830

45

0,806

0,509

510516

32,0

50,0

6,0

6,0

5,0

-

96°00

4,627

62

1,319

0,833

510517

33,0

30,0

7,0

5,0

3,0

-

98°00

3,509

48

1,000

0,632

510518

34,0

40,0

2,0

10,0

3,0

0,5

92°00

4,516

53

1,287

0,813

510519

34,0

40,0

6,0

3,2

4,0

5,0

92°30

3,114

54

0,888

0,561

510520

35,0

41,0

6,2

3,2

4,0

5,0

92°30

3,270

54

0,932

0,589

510552

35,0

44,0

4,0

2,5

4,0

0,5

97°00

2,437

60

0,694

0,439

510521

36,0

70,0

12,0

16,0

15,0

3,0

99°00

14,000

84

4,018

2,538

510554

38,0

72,0

10,0

7,5

4,0

1,0

95°00

8,511

84

2,426

1,532

510553

38,5

42,0

6,0

7,5

4,0

1,0

95°00

5,067

60

1,444

0,912

510522

39,0

36,0

4,0

7,5

2,0

-

100°00

4,034

58

1,150

0,726

510523

40,0

48,0

5,0

4,0

3,5

0,5

93°30

3,751

64

1,069

0,675

510524

41,0

47,5

3,0

3,0

3,0

0,5

95°44

2,590

66

0,738

0,466

510525

41,5

24,0

3,0

5,0

4,0

6,0

98°30

2,299

51

0,655

0,414

510526

42,0

24,0

3,0

5,0

4,0

6,0

92°30

2,277

49

0,649

0,410

510655

4,2,0

40,0

9,0

4,0

4,0

-

99°30

5,101

63

1,454

0,918

510563

42,0

60,0

7,0

4,0

4,0

0,5

94°00

5,100

76

1,454

0,918

510527

42,0

150,0

5,0

3,5

5,0

0,5

107°00

7,287

168

2,077

1,312

510560

45,0

30,0

2,5

9,0

3,0

0,5

102°00

3,714

60

1,058

0,669

510528

50,0

26,0

13,3

15,0

1,0

1,0

110°00

9,263

61

2,640

1,667

510529

50,0

51,0

6,0

6,0

5,0

0,5

91°30

5,756

72

1,641

1,036

510530

50,0

52,0

6,0

6,0

6,0

0,5

95°02

5,846

75

1,666

1,052

510564

50,0

67,0

4,0

5,5

5,0

0,5

95°00

5,526

87

1,575

0,995

510531

50,0

75,0

5,0

5,0

5,0

-

95°42

6,065

94

1,729

1,092

510532

55,0

50,0

5,0

9,0

5,0

0,5

90°43

6,858

75

1,955

1,235

510533

57,0

64,0

34,0

18,0

5,0

1,0

93°54

24,966

89

7,115

4,494

510534

58,0

50,0

5,0

12,0

5,0

0,5

90°43

8,362

77

2,383

1,505

510535

59,3

61,5

11,3

5,0

8,0

-

99°00

9,386

86

2,675

1,690

510537

60,0

60,0

16,0

5,5

6,5

0,5

93°00

11,573

87

3,298

2,083

510556

61,0

33,0

2,0

6,0

3,0

-

98°00

3,128

74

0,892

0,563

510538

61,0

36,0

5,0

6,0

3,0

0,5

98°00

4,974

76

1,418

0,895

510539

65,0

60,0

15,0

9,0

8,0

-

94°00

13,962

92

3,979

2,513

510540

72,0

67,5

20,0

18,0

10,0

3,0

115°40

24,818

73

7,073

4,467

510641

74,5

35,3

4,5

4,5

5,0

-

96°30

4,809

86

1,371

0,866

510557

77,0

55,0

26,0

7,0

5,0

-

104°00

22,684

107

6,465

4,083

510542

88,0

110,0

20,0

32,0

5,0

-

94°00

46,830

146

13,346

8,429

510543

96,0

77,0

18,0

30,0

5,0

1,0

98°30

35,817

133

10,208

6,447

510544

100,0

70,0

15,0

9,0

8,0

-

94°00

20,125

125

5,736

3,623

510545

105,0

52,0

5,0

9,0

8,0

-

101°00

9,713

128

2,768

1,748

510546

105,0

52,0

5,5

9,0

8,0

-

103°00

10,241

130

2,919

1,843

510547

105,0

52,0

7,0

9,0

8,0

-

102°00

11,693

129

3,332

2,105

510548

107,5

51,5

5,0

11,5

8,0

-

101°00

11,005

130

3,136

1,981

510539

107,5

51,5

5,5

11,5

8,0

-

103°00

11,542

132

3,290

2,078

510550

108,7

100,0

7,0

41,5

5,0

-

94°00

46,932

154

13,376

8,448

510558

145,0

85,0

40,0

20,0

10,0

1,5

110°00

70,917

200

20,211

12,765

Примечания:

1. Значения радиусов r, не приведенные в таблице, должны соответствовать требованиям ГОСТ 8617, ГОСТ 19657.

2. Радиусы притупления острых кромок (r1, r2, r3, r4) должны соответствовать требованиям ГОСТ 8617, ГОСТ 19657.

Таблица 4

Номер профиля

Размеры, мм

Угол между полками, град. мин

Площадь сечения, см2

Диаметр описанной окружности, мм

Теоретическая масса 1 м сплава, кг

H

B

S

S1

R

r

α

алюминиевого

магниевого

510601

15,0

15,0

1,0

1,0

1,5

-

96°00

0,296

22

0,084

0,053

510602

15,0

15,0

1,0

1,0

1,5

-

98°30

0,294

23

0,084

0,053

510603

15,0

15,0

1,0

1,0

6,0

0,5

107°00

0,301

24

0,086

0,054

510604

15,0

15,0

1,0

1,0

1,5

-

115°30

0,291

25

0,083

0,052

510605

15,0

15,0

1,5

1,5

2,0

-

98°00

0,436

23

0,124

0,078

510606

16,0

15,0

3,0

4,0

10,0

10,0

128°45

1,026

28

0,293

0,185

510607

16,0

15,4

4,0

3,0

10,0

10,0

132°00

1,053

29

0,300

0,190

510608

16,6

16,0

4,0

4,5

10,0

-

130°00

0,938

30

0,266

0,168

510609

17,6

15,4

4,0

4,5

10,0

-

136°00

0,833

31

0,238

0,150

510610

18,0

18,0

1,5

1,5

2,0

-

95°30

0,526

27

0,150

0,095

510611

20,0

16,0

1,5

1,5

1,5

-

105°00

0,524

29

0,149

0,094

510612

20,0

17,0

3,0

4,0

2,0

-

100°00

1,185

28

0,338

0,213

510613

20,0

18,0

1,0

1,0

5,0

0,5

103°00

0,391

30

0,111

0,070

510614

20,0

18,0

1,0

1,0

5,0

-

108°00

0,375

31

0,107

0,067

510615

20,0

18,0

1,8

1,5

3,0

-

115°00

0,604

32

0,172

0,109

510616

20,0

18,0

1,8

3,0

3,0

-

115°00

0,860

32

0,245

0,155

510617

20,0

18,5

1,5

1,5

1,0

2,0

102°30

0,557

30

0,159

0,100

510618

20,0

20,0

1,0

1,0

2,0

-

99°00

0,396

30

0,113

0,071

510619

20,0

20,0

1,5

1,5

2,0

-

94°00

0,586

29

0,167

0,105

510620

20,0

20,0

1,5

1,5

2,0

-

96°00

0,586

30

0,167

0,105

510621

20,0

20,0

1,5

1,5

2,0

-

99°00

0,586

30

0,167

0,105

510622

20,5

20,0

1,5

1,5

2,0

-

102°06

0,593

32

0,169

0,107

510623

20,0

20,0

1,5

1,5

2,0

-

103°00

0,585

31

0,167

0,105

510624

20,0

20,0

1,5

1,5

2,0

-

112°00

0,583

33

0,166

0,106

510625

20,0

20,0

1,5

1,5

2,0

-

116°00

0,581

34

0,166

0,105

510626

20,0

20,0

2,0

2,0

2,0

-

99°00

0,771

30

0,220

0,139

510627

20,0

20,0

2,0

2,0

2,0

-

100°00

0,771

31

0,220

0,139

510628

20,0

20,0

2,0

2,0

3,0

-

120°00

0,761

35

0,217

0,137

510629

20,0

20,0

2,5

2,5

2,0

-

126°00

0,957

36

0,273

0,172

510630

20,0

20,0

2,5

2,5

2,0

-

138°00

0,955

37

0,272

0,172

511095

22,0

22,0

2,0

3,0

2,5

-

120°00

1,057

38

0,301

0,190

510631

22,0

22,0

2,5

4,0

5,0

5,0

120°00

1,379

38

0,393

0,248

510632

22,2

20,0

2,0

3,0

4,0

5,0

116°00

1,019

36

0,290

0,183

510633

22,8

19,5

1,5

2,5

2,0

2,5

105°00

0,801

34

0,228

0,144

510634

23,0

21,0

2,0

4,0

3,0

5,0

112°00

1,255

37

0,357

0,163

510635

23,0

21,0

2,5

3,5

5,0

5,0

115°00

1,267

37

0,358

0,226

510636

23,0

22,8

3,5

3,5

3,5

0,5

124°00

1,507

40

0,430

0,271

510637

24,0

20,4

4,0

4,0

2,0

-

101°20

1,649

34

0,470

0,297

510638

24,0

21,0

2,0

5,0

3,0

5,0

112°00

1,489

37

0,424

0,268

510639

24,0

22,0

3,0

2,5

5,0

0,5

138°00

1,110

43

0,316

0,200

510640

25,0

15,0

1,0

1,5

2,0

-

96°00

0,468

31

0,133

0,084

510641

25,0

15,0

1,5

1,0

2,0

-

95°00

0,518

30

0,148

0,093

510642

25,0

16,0

1,2

1,2

2,0

-

123°00

0,475

36

0,135

0,085

510643

25,0

18,0

2,0

1,5

2,0

0,5

114°00

0,748

36

0,213

0,135

510644

25,0

18,0

2,0

1,5

4,0

-

126°00

0,709

38

0,202

0,128

510645

25,0

18,0

2,0

2,0

4,0

-

140°30

0,752

41

0,214

0,135

510646

25,0

18,0

2,5

2,0

2,5

-

110°00

0,949

35

0,271

0,171

510647

25,0

20,0

1,5

2,5

2,0

-

98°00

0,849

34

0,242

0,153

510648

25,0

20,0

2,0

2,5

2,5

0,5

119°30

0,961

39

0,274

0,173

510649

25,0

20,0

2,5

2,0

1,2

-

97°22

0,983

34

0,280

0,177

510650

25,0

20,0

2,5

2,0

5,0

-

101°30

1,009

35

0,288

0,182

510651

25,0

20,0

2,5

2,0

2,0

-

105°59

0,989

36

0,282

0,178

510652

25,0

20,0

2,5

3,0

3,0

0,5

98°30

1,172

34

0,334

0,211

510653

25,0

20,0

2,5

3,0

3,0

-

102°30

1,173

35

0,334

0,2,11

510654

25,0

20,0

2,5

3,0

3,0

-

106°00

1,172

36

0,334

0,211

510655

25,0

20,0

2,5

4,8

2,0

-

99°40

1,493

35

0,426

0,269

510656

25,0

22,0

3,0

4,0

3,2

1,0

92°00

1,532

34

0,437

0,276

510657

25,0

24,0

3,0

3,0

3,0

-

104°00

1,405

39

0,401

0,253

510658

25,0

25,0

1,5

1,5

2,0

-

97°00

0,736

37

0,210

0,132

510659

25,0

25,0

1,5

1,5

2,0

-

110°00

0,733

41

0,209

0,132

510660

25,0

25,0

1,5

1,5

2,0

-

117°00

0,731

43

0,208

0,132

510661

25,0

25,0

1,5

1,5

5,0

-

142°00

0,586

48

0,167

0,106

510662

25,0

25,0

2,0

2,0

2,0

-

95°35

0,970

37

0,277

0,175

510663

25,0

25,0

2,0

2,0

2,0

-

97°40

0,971

38

0,277

0,175

510664

25,0

25,0

2,0

2,0

2,0

-

100°00

0,971

38

0,277

0,175

510665

25,0

25,0

2,0

2,0

2,0

-

103°00

0,971

39

0,277

0,175

510666

25,0

25,0

2,0

2,0

2,0

-

108°00

0,971

40

0,277

0,175

510667

25,0

25,0

2,0

2,0

2,0

-

118°00

0,971

40

0,277

0,175

511096

25,0

25,0

2,0

2,0

2,0

-

135°00

0,965

46

0,275

0,174

511182

25,0

25,0

2,0

3,0

2,5

0,5

120°00

1,207

43

0,344

0,217

510668

25,0

25,0

2,4

2,4

3,2

-

94°54

1,165

37

0,332

0,210

510669

25,0

25,0

2,4

2,4

3,2

-

102°06

1,162

39

0,331

0,209

510670

25,0

25,0

2,4

2,4

2,4

-

112°30

1,158

42

0,330

0,209

510671

25,0

25,0

2,5

2,5

2,0

-

100°00

1,202

38

0,343

0,216

510672

25,0

25,0

2,5

2,5

2,0

-

113°00

1,206

42

0,344

0,217

510673

25,0

25,0

3,0

3,0

3,0

-

135°00

1,420

46

0,405

0,256

510674

25,0

25,0

3,0

3,0

3,0

-

165°00

1,382

50

0,394

0,249

510675

25,0

25,0

5,0

5,0

2,0

-

125°00

2,359

44

0,672

0,425

510676

25,4

19,0

2,4

2,4

3,0

-

100°45

1,028

34

0,293

0,185

510677

26,0

18,0

2,0

2,5

3,0

-

117°09

0,928

38

0,265

0,167

510678

26,0

20,0

2,0

2,0

2,0

-

120°55

0,890

40

0,254

0,160

511097

26,0

26,0

2,5

4,0

2,5

-

112°00

1,624

43

0,463

0,292

510679

27,0

20,0

2,5

3,0

3,0

-

101°00

1,222

37

0,348

0,220

510680

27,0

20,0

2,5

3,0

3,0

-

109°00

1,221

38

0,348

0,220

510681

27,0

20,0

3,0

3,0

3,0

-

100°00

1,345

36

0,383

0,242

510682

27,0

22,0

2,5

3,0

3,0

0,5

119°00

1,277

42

0,364

0,230

510683

27,0

25,5

6,0

7,0

8,0

-

117°30

3,067

45

0,874

0,552

510684

27,6

18,0

1,8

4,0

3,0

-

115°00

1,173

39

0,334

0,211

510685

28,0

21,0

5,0

5,0

5,0

-

101°00

2,269

38

0,647

0,408

510686

28,0

21,0

5,0

5,0

5,0

0,5

105°00

2,270

39

0,647

0,409

510687

28,0

21,0

5,0

5,0

5,0

0,5

109°00

2,270

40

0,647

0,409

510688

28,0

24,0

4,0

9,5

6,0

-

117°50

3,202

45

0,912

0,576

510689

28,0

25,0

2,5

2,5

5,0

-

101°30

1,299

41

0,370

0,234

510690

28,0

25,0

3,0

3,0

3,0

-

93°30

1,522

39

0,434

0,274

510691

28,0

26,0

3,0

20,0

2,0

3,0

100°00

5,786

41

1,649

1,041

510692

28,0

28,0

3,0

6,0

5,0

-

91°00

2,305

40

0,683

0,431

511183

28,0

28,0

3,5

3,5

2,5

0,5

120°00

1,878

49

0,535

0,338

510693

28,0

28,0

3,5

3,5

3,0

-

124°51

1,872

50

0,534

0,337

510694

28,0

28,0

7,0

7,0

5,0

-

130°00

3,599

51

1,020

0,648

510695

28,0

28,0

7,0

7,0

5,0

-

145°00

3,593

53

1,024

0,647

510696

28,6

18,8

3,2

3,2

4,5

0,5

124°30

1,411

42

0,402

0,264

511098

28,7

25,0

4,0

2,5

4,0

-

93°30

1,709

39

0,487

0,308

510697

29,6

27,5

20,0

3,0

2,0

6,0

105°00

6,656

45

1,897

1,198

510698

30,0

20,0

1,5

1,5

5,0

-

98°00

0,764

38

0,218

0,138

510699

30,0

20,0

1,5

2,0

2,0

-

99°00

0,830

39

0,236

0,149

510700

30,0

20,0

1,5

2,0

2,0

-

103°00

0,829

40

0,236

0,149

510701

30,0

20,0

2,0

2,0

5,0

-

98°00

0,999

38

0,285

0,180

510702

30,0

20,0

2,0

2,0

2,0

-

107°00

0,971

41

0,277

0,175

510703

30,0

20,0

2,5

2,0

3,0

-

100°00

1,118

39

0,319

0,201

510704

30,0

20,0

2,5

2,0

5,0

-

101°30

1,134

39

0,323

0,204

510705

30,0

20,0

2,5

2,0

3,0

-

107°00

1,116

41

0,318

0,201

510706

30,0

20,0

2,5

2,5

5,0

-

96°00

1,233

38

0,351

0,222

510707

30,0

20,0

2,5

2,5

5,0

-

116°00

1,183

43

0,337

0,213

510708

30,0

20,0

2,5

2,5

5,0

0,5

119°23

1,172

44

0,334

0,211

510709

30,0

20,0

2,5

2,5

5,0

-

126°44

1,144

45

0,326

0,206

510710

30,0

22,0

4,0

4,0

4,0

8,0

99°30

1,886

40

0,537

0,339

510711

30,0

25,0

1,5

1,5

1,5

-

97°52

0,809

42

0,230

0,146

510712

30,0

25,0

1,5

1,5

3,0

-

99°30

0,817

42

0,233

0,147

510713

30,0

25,0

2,0

2,0

2,0

-

95°21

1,070

41

0,305

0,193

510714

30,0

25,0

2,0

2,0

3,0

-

97°00

1,078

41

0,307

0,194

510715

30,0

25,0

2,0

2,0

2,0

-

110°00

1,071

45

0,305

0,193

510716

30,0

25,0

2,0

2,0

2,0

0,5

114°00

1,071

46

0,305

0,193

511161

30,0

25,0

3,0

3,0

5,0

-

142°00

1,463

52

0,417

0,263

510717

30,0

25,0

6,0

8,0

5,0

5,0

139°00

3,644

52

1,038

0,656

510718

30,0

25,5

2,5

2,5

2,5

-

95°40

1,341

41

0,382

0,241

510719

30,0

25,6

3,0

3,0

2,0

-

102°12

1,599

43

0,456

0,288

510720

30,0

28,0

1,5

1,5

2,0

-

92°00

0,856

42

0,244

0,154

510721

30,0

28,0

5,0

5,0

5,0

-

94°00

2,711

42

0,773

0,488

510720

30,0

30,0

1,5

1,5

5,0

-

137°00

0,763

56

0,217

0,137

510723

30,0

30,0

1,5

2,5

3,0

-

92°20

1,182

43

0,337

0,213

510724

30,0

30,0

2,0

2,0

2,0

-

93°15

1,170

44

0,333

0,211

510725

30,0

30,0

2,0

2,0

4,0

-

97°00

1,188

45

0,339

0,214

510726

30,0

30,0

2,0

2,0

2,0

-

98°00

1,171

45

0,334

0,211

510727

30,0

30,0

2,0

2,0

2,0

-

99°00

1,171

46

0,334

0,211

510728

30,0

30,0

2,0

2,0

2,0

-

102°06

1,171

47

0,334

0,211

510729

30,0

30,0

2,0

2,0

4,0

-

106°00

1,177

48

0,336

0,212

510730

30,0

30,0

2,0

2,0

2,0

-

106°00

1,171

49

0,334

0,211

510731

30,0

30,0

2,0

2,0

4,0

-

115°00

1,159

91

0,330

0,209

510732

30,0

30,0

2,0

2,0

4,0

-

120°00

1,148

52

0,327

0,207

510733

30,0

30,0

2,0

2,0

5,0

-

138°25

1,050

56

0,299

0,189

510734

30,0

30,0

2,5

2,5

2,5

-

102°00

1,455

47

0,415

0,262

510735

30,0

30,0

2,5

2,5

6,0

-

106°00

1,466

48

0,418

0,264

510736

30,0

30,0

2,5

2,5

5,0

-

109°00

1,454

49

0,414

0,262

510737

30,0

30,0

2,5

2,5

2,5

0,5

110°00

1,455

49

0,415

0,262

510738

30,0

30,0

3,0

3,0

3,0

0,5

95°00

1,732

44

0,494

0,312

510739

30,0

30,0

3,0

3,0

2,0

-

96°00

1,725

46

0,492

0,311

510740

30,0

30,0

3,0

3,0

3,0

-

100°00

1,735

46

0,494

0,312

510741

30,0

30,0

3,0

3,0

3,0

0,5

105°00

1,735

48

0,495

0,312

510742

30,0

30,0

3,0

3,0

3,0

0,5

110°00

1,735

49

0,496

0,312

510743

30,0

30,0

3,0

3,0

3,0

-

115°30

1,734

51

0,494

0,312

510744

30,0

30,0

3,5

3,5

3,0

-

95°30

1,726

45

0,492

0,311

510745

30,0

30,0

4,0

4,0

5,0

-

124°00

2,252

53

0,642

0,406

510746

31,0

25,0

2,5

4,8

3,0

-

93°50

1,881

41

0,636

0,339

510747

31,0

25,0

2,5

4,8

3,0

-

94°00

1,881

41

0,536

0,339

510748

32,0

19,8

3,5

5,5

4,0

2,0

117°32

2,087

45

0,595

0,376

510749

32,0

22,0

3,0

4,0

3,5

-

93°30

1,750

40

0,499

0,315

510750

32,0

25,0

3,0

2,0

4,0

-

107°00

1,421

46

0,406

0,256

510751

32,0

25,0

3,0

4,0

4,0

-

110°00

1,875

46

0,534

0,337

510752

32,0

25,0

5,0

5,0

5,0

0,5

110°00

2,670

47

0,761

0,481

510753

32,0

25,0

8,5

2,5

2,0

-

98°00

3,191

43

0,909

0,574

510754

32,0

25,2

4,0

6,0

3,0

5,0

98°00

2,565

43

0,731

0,462

510756

32,0

26,0

5,0

5,0

5,0

0,5

99°00

2,717

44

0,774

0,489

511162

32,0

30,0

5,0

2,5

16,0

0,5

134°00

1,316

57

0,375

0,237

511213

32,0

32,0

3,8

3,8

3,0

0,5

135°00

2,331

59

0,664

0,420

510756

32,0

32,0

4,0

6,0

4,0

1,0

93°00

3,001

46

0,855

0,540

510757

33,0

29,0

3,0

3,0

3,0

-

104°00

1,795

49

0,512

0,323

511099

33,0

30,0

5,0

5,0

5,0

-

119°22

2,962

54

0,844

0,533

510758

33,3

30,0

7,0

5,0

3,0

0,5

98°00

3,541

48

1,009

0,637

511100

33,5

31,5

6,5

5,0

4,0

0,5

101°00

3,503

50

0,998

0,630

510759

34,0

18,0

1,8

4,0

3,0

-

116°00

1,289

45

0,367

0,232

510760

34,0

32,0

1,5

2,4

5,0

-

93°00

1,291

48

0,368

0,232

511173

35,0

17,0

6,4

5,5

3,0

-

126°00

2,972

47

0,847

0,535

510761

35,0

19,0

3,0

11,0

3,0

-

117°30

3,094

47

0,882

0,557

510762

35,0

22,0

1,5

1,5

5,0

0,5

133°00

0,739

53

0,211

0,133

510763

35,0

24,0

3,0

3,0

6,0

-

120°00

1,653

51

0,471

0,298

510764

35,0

25,0

3,0

4,0

4,0

-

95°31

1,968

45

0,561

0,354

510765

35,0

25,0

3,0

5,0

5,0

-

115°00

2,189

51

0,924

0,394

510766

35,0

26,0

2,0

3,0

1,0

-

98°25

1,430

47

0,408

0,257

510767

35,0

28,0

2,0

2,0

2,0

-

108°00

1,231

51

0,351

0,222

510768

35,0

30,0

2,5

3,5

5,0

-

121°47

1,828

57

0,521

0,329

510769

35,0

30,0

3,0

4,0

4,0

0,5

105°44

2,168

52

0,618

0,390

510770

35,0

30,0

5,0

2,0

2,5

0,5

108°00

2,292

53

0,653

0,413

511163

35,0

34,0

7,0

5,0

5,0

1,0

102°00

3,892

54

1,109

0,701

510771

35,0

35,0

2,5

2,5

4,0

-

112°00

1,700

58

0,484

0,306

510772

36,0

35,0

3,0

3,0

6,0

1,5

106°00

2,044

56

0,583

0,368

510773

35,0

36,0

2,5

4,0

15,0

-

129°30

2,184

63

0,622

0,393

510775

36,0

25,0

3,0

3,0

3,0

0,5

100°00

1,603

51

0,455

0,286

511101

36,0

30,0

2,5

2,5

3,0

0,5

100°00

1,607

51

0,458

0,289

510776

36,0

36,0

4,0

4,0

6,0

-

98°00

2,790

54

0,795

0,502

510777

36,0

36,0

3,0

6,0

3,0

-

96°00

3,097

54

0,883

0,557

511102

36,0

36,0

4,3

2,5

4,0

-

92°30

2,377

52

0,677

0,428

510778

36,1

36,0

6,0

6,0

6,0

-

95°00

4,056

53

1,156

0,730

510779

37,0

25,0

3,0

2,5

5,0

-

127°00

1,633

56

0,465

0,294

510780

37,0

25,0

3,0

2,5

5,0

-

133°00

1,596

57

0,456

0,287

510781

38,0

25,0

2,4

2,4

2,4

-

120°00

1,468

55

0,418

0,264

510782

38,0

25,0

3,0

3,0

1,0

-

110°00

1,827

52

0,521

0,329

511174

38,0

30,0

3,0

5,0

2,5

0,5

110°00

2,541

56

0,724

0,467

510783

38,0

34,0

3,2

7,0

4,0

5,0

92°30

3,367

52

0,960

0,606

511215

38,0

36,0

5,0

2,0

4,0

0,5

95°00

2,559

55

0,729

0,461

510784

38,0

38,0

3,0

3,0

6,0

9,0

91°40

2,100

55

0,599

0,378

510785

38,0

38,0

3,0

3,0

6,0

9,0

101°25

2,160

59

0,616

0,389

510786

38,0

38,0

4,0

4,0

4,0

-

135°00

2,898

70

0,826

0,522

510787

38,0

38,0

4,0

4,0

4,0

-

142°00

2,885

72

0,822

0,519

510788

38,0

38,0

4,0

4,0

4,0

-

150°00

2,868

73

0,817

0,516

510789

38,0

38,0

4,0

4,0

4,0

-

165°00

2,830

75

0,807

0,509

510790

38,0

38,0

4,0

8,5

3,0

0,5

94°55

4,462

56

1,272

0,803

510791

38,0

38,0

4,0

8,5

3,0

0,5

97°14

4,476

57

1,276

0,806

510792

38,5

35,5

3,0

3,0

3,0

-

113°00

2,155

62

0,614

0,388

510793

39,3

18,0

2,0

13,0

3,0

-

117°09

3,266

50

0,931

0,588

510794

40,0

20,0

2,0

3,0

4,0

0,5

106°25

1,362

50

0,398

0,245

510795

40,0

25,0

2,5

2,5

5,0

-

101°30

1,599

51

0,456

0,288

510796

40,0

25,0

3,0

3,0

5,0

-

116°00

1,865

56

0,532

0,336

510797

40,0

25,0

3,0

4,0

4,0

0,5

96°00

2,117

49

0,603

0,381

510798

40,0

25,0

3,0

4,0

4,0

-

98°09

2,118

50

0,604

0,381

511103

40,0

25,0

3,0

4,0

4,0

0,5

104°00

2,117

52

0,608

0,381

510799

40,0

25,0

3,0

4,0

4,0

0,5

115°00

2,111

55

0,602

0,380

510600

40,0

25,0

4,0

3,0

4,0

0,5

105°52

2,268

53

0,646

0,408

510801

40,0

25,0

4,0

3,0

4,0

-

122°00

2,252

57

0,642

0,405

510802

40,0

25,0

4,0

3,0

6,0

0,5

140°30

2,104

61

0,600

0,379

510803

40,0

25,0

4,0

4,0

3,0

0,5

112°50

2,489

55

0,709

0,448

510804

40,0

25,0

4,0

4,0

5,0

-

116°00

2,470

56

0,704

0,445

510805

40,0

25,0

4,0

4,0

3,0

-

127°10

2,492

59

0,710

0,449

510806

40,0

25,2

4,0

3,0

4,0

1,0

95°50

2,273

49

0,648

0,409

510807

40,0

28,0

2,5

5,0

3,0

-

93°50

2,302

50

0,656

0,414

510808

40,0

30,0

2,0

2,0

2,0

0,5

101°25

1,371

55

0,391

0,247

510809

40,0

30,0

2,5

2,5

5,0

-

109°00

1,704

57

0,486

0,307

510810

40,0

30,0

3,0

3,0

4,0

-

122°00

2,015

61

0,574

0,363

510811

40,0

30,0

4,0

3,0

4,0

-

107°00

2,416

57

0,689

0,435

510812

40,0

30,0

4,0

3,0

5,0

0,5

117°00

2,397

60

0,683

0,431

510813

40,0

30,7

4,0

3,5

4,0

-

110°00

2,574

58

0,734

0,463

510814

40,0

34,0

3,0

3,0

2,5

-

112°00

2,156

61

0,615

0,388

511175

40,0

35,0

6,0

6,5

4,0

0,5

108°00

4,393

61

1,252

0,791

510815

40,0

36,0

3,0

2,5

5,0

-

101°30

2,064

59

0,588

0,371

510816

40,0

38,0

3,0

3,0

3,0

0,5

100°00

2,274

60

0,648

0,409

510817

40,0

38,0

4,0

3,0

4,0

-

101°30

2,659

60

0,758

0,479

510818

40,0

40,0

2,5

2,5

4,0

0,5

108о00

1,956

65

0,557

0,352

510819

40,0

40,0

2,5

2,5

4,0

-

113°00

1,948

67

0,555

0,351

510820

40,0

40,0

3,0

3,0

3,0

0,5

96°00

2,333

59

0,665

0,420

510821

40,0

40,0

3,0

3,0

4,0

-

105°00

2,339

63

0,667

0,421

510822

40,0

40,0

3,0

3,0

4,0

0,5

108°00

2,336

65

0,666

0,420

510823

40,0

40,0

3,0

3,0

5,0

-

109°00

2,334

65

0,665

0,420

510824

40,0

40,0

3,0

3,0

4,0

-

110°00

2,334

66

0,665

0,420

510825

40,0

40,0

3,0

3,0

4,0

-

116°00

2,326

68

0,663

0,419

510826

40,0

40,0

4,0

4,0

4,0

0,5

102°00

3,084

62

0,879

0,555

510827

40,0

40,0

4,0

4,0

4,0

0,5

103°00

3,085

63

0,879

0,555

510828

40,0

40,0

4,0

4,0

4,0

-

106°12

3,086

64

0,879

0,555

510829

40,0

40,0

4,0

4,0

4,0

0,5

111°00

3,085

66

0,879

0,555

511105

40,0

40,0

4,0

4,0

5,0

1,0

115°45

3,075

68

0,876

0,553

510830

40,0

40,0

4,0

4,0

4,0

-

130°42

3,066

73

0,874

0,552

511106

40,0

40,0

5,5

5,5

3,0

-

144°00

4,242

76

1,209

0,763

510831

41,0

30,0

2,0

8,0

5,0

-

114°00

3,176

60

0,905

0,572

511107

41,0

38,0

6,0

3,2

4,0

-

94°00

3,528

58

1,005

0,635

510832

42,0

22,0

3,0

7,0

3,0

4,0

118°00

2,727

56

0,777

0,491

510835

42,0

25,0

3,0

6,0

4,0

1,0

92°30

2,619

50

0,746

0,471

511109

42,0

25,5

10,5

5,0

4,0

1,0

105°30

5,335

55

1,520

0,960

510836

42,0

30,0

3,0

4,0

4,0

-

108°54

2,377

59

0,677

0,428

510837

42,0

30,0

3,0

4,0

4,0

1,0

92°10

2,374

53

0,677

0,427

510838

42,0

35,0

2,0

10,0

5,0

-

114°00

4,332

65

1,235

0,780

511214

42,0

35,0

2,5

4,0

4,0

2,0

100°00

2,382

59

0,679

0,429

511110

42,0

36,0

3,5

5,5

4,0

-

105°40

3,317

62

0,945

0,597

510839

42,0

40,0

3,0

6,0

4,0

0,5

109°30

3,547

67

1,011

0,639

510840

43,0

40,0

7,5

6,5

5,0

0,5

93°45

5,415

61

1,543

0,975

511111

44,0

22,0

3,0

2,5

6,0

0,5

130°00

1,704

61

0,486

0,307

510841

44,0

31,0

4,0

12,0

4,0

-

98°00

5,129

57

1,462

1,923

511164

44,0

34,0

5,5

5,5

4,0

1,0

101°00

4,056

61

1,156

0,730

511112

44,0

35,0

3,3

4,5

5,0

0,5

135°00

2,856

73

0,814

0,514

510842

44,0

37,0

5,5

2,5

5,0

-

95°30

3,266

60

0,931

0,588

510843

45,0

23,0

2,5

3,0

3,0

-

106°00

1,762

56

0,502

0,317

510844

45,0

24,0

4,0

9,0

4,0

2,0

92°00

3,640

52

1,037

0,653

510845

45,0

24,0

4,0

9,0

4,0

2,0

97°30

3,678

54

1,048

0,662

510846

45,0

28,0

2,0

2,0

2,5

1,0

98°17

1,432

56

0,408

0,258

510847

45,0

28,0

2,0

2,0

2,4

-

110°00

1,431

61

0,408

0,258

510848

45,0

30,0

2,5

2,5

5,0

-

101°30

1,849

59

0,527

0,333

510849

45,0

30,0

2,0

3,0

3,0

-

119°00

1,753

65

0,500

0,315

510850

45,0

30,0

3,0

3,0

5,0

-

119°00

2,156

65

0,614

0,388

511113

45,0

30,0

3,0

3,0

3,0

-

132°50

2,173

69

0,619

0,391

510851

45,0

30,0

3,0

6,0

4,0

-

105°15

3,033

60

0,864

0,546

510852

45,0

30,0

5,0

5,0

5,0

0,5

117°00

3,565

64

1,016

0,642

510853

45,0

35,0

2,0

3,0

5,0

-

116°00

1,887

68

0,538

0,340

510854

45,0

35,0

5,0

5,0

6,0

-

128°34

3,759

72

1,071

0,677

510855

45,0

40,0

3,0

3,0

5,0

-

135°00

2,395

79

0,683

0,431

510856

45,0

40,0

4,0

5,0

6,0

-

121°00

3,618

74

1,031

0,651

510857

45,0

40,0

4,5

7,0

5,0

3,0

126°30

4,642

76

1,323

0,836

510858

45,0

40,0

4,5

7,0

5,0

3,0

143°30

4,659

81

1,328

0,839

510859

45,0

41,4

4,0

2,0

4,0

-

105°15

2,580

69

0,735

0,464

510860

45,0

42,0

5,0

4,0

6,0

-

120°00

3,752

75

1,069

0,675

510861

45,0

44,0

7,0

6,0

4,0

-

96°45

5,442

67

1,551

0,980

510862

45,0

45,0

4,0

4,0

4,0

-

100°00

3,484

69

0,993

0,627

510863

45,0

45,0

5,0

5,0

5,0

-

80°00

4,274

58

1,218

0,769

510864

45,0

45,0

5,0

5,0

5,0

-

80°30

4,277

58

1,219

0,770

510865

45,0

45,0

5,0

5,0

5,0

-

97°00

4,315

67

1,230

0,777

510866

45,0

45,0

5,0

5,0

5,0

-

99°30

4,319

69

1,231

0,777

510867

45,0

45,0

5,0

5,0

5,0

-

100°00

4,318

69

1,231

0,777

510868

45,0

45,0

5,0

5,0

6,0

-

121°00

4,287

78

1,222

0,772

510869

45,0

45,0

7,0

7,0

5,0

1,2

120°00

5,974

78

1,703

1,075

510870

45,0

45,0

6,0

6,0

6,0

-

100°00

5,138

69

1,464

0,925

510871

45,0

45,0

7,0

7,0

5,0

1,0

106°00

5,939

72

1,693

1,069

510872

45,1

44,0

5,0

5,0

5,0

-

102°30

4,276

69

1,219

0,770

510873

46,0

45,0

4,0

7,0

3,0

-

94°41

4,752

67

1,354

0,855

510874

47,0

36,0

3,0

2,5

4,0

-

101°00

2,264

64

0,645

0,408

510875

47,0

44,2

10,0

6,0

5,0

-

94°10

6,844

67

1,951

1,232

511159

48,0

23,0

1,5

2,5

2,5

-

121°00

1,264

63

0,360

0,228

510877

48,0

45,0

3,0

3,0

2,5

-

112°00

2,726

77

0,777

0,491

510878

48,0

35,0

4,0

5,0

5,0

-

104°00

3,531

66

1,006

0,636

511217

48,5

38,5

6,0

6,0

3,5

1,0

113°00

4,974

73

1,418

0,895

511115

48,5

38,5

6,0

6,0

8,0

1,0

122°00

4,884

76

1,392

0,879

511158

50,0

18,0

2,0

8,0

2,5

-

121°00

2,445

61

0,697

0,440

510880

50,0

20,0

2,0

3,0

2,0

-

96°00

1,553

56

0,443

0,279

510881

50,0

22,0

3,0

5,0

5,0

-

133°11

2,446

67

0,697

0,440

511176

50,0

25,0

2,0

4,5

3,0

-

135°00

2,077

70

0,592

0,374

510882

50,0

30,0

3,0

4,0

4,0

0,5

96°00

2,617

61

0,746

0,471

510883

50,0

30,0

3,0

4,0

4,0

-

112°30

2,613

67

0,745

0,470

511177

50,0

30,0

3,5

3,0

3,0

-

94°00

2,568

60

0,732

0,462

510884

50,0

30,0

4,0

3,0

2,0

-

96°00

2,799

61

0,798

0,504

510885

50,0

30,0

4,0

4,0

5,0

-

96°00

3,095

61

0,882

0,557

510886

50,0

30,0

5,0

5,0

6,0

-

121°12

3,787

70

1,079

0,682

511116

50,0

32,0

6,0

3,0

3,0

-

94°30

3,813

61

1,087

0,686

510887

50,0

34,5

4,0

5,0

4,0

-

103°36

3,581

67

1,020

0,644

510888

50,0

35,0

2,5

5,0

5,0

-

93°00

2,930

63

0,835

0,527

510389

50,0

35,0

4,0

7,0

5,0

-

93°57

4,238

63

1,208

0,763

510890

50,0

36,0

3,0

2,5

5,0

-

101°30

2,364

67

0,674

0,425

510891

50,0

36,0

3,0

3,0

3,0

-

95°00

2,513

64

0,716

0,452

510892

50,0

40,0

2,5

3,0

5,0

-

123°02

2,351

79

0,670

0,423

510893

50,0

40,0

3,0

3,0

5,0

-

109°00

2,634

74

0,751

0,474

510894

50,0

40,0

5,0

4,0

3,0

-

105°00

3,952

72

1,126

0,711

510895

50,0

40,0

5,0

5,0

3,0

-

105°15

4,313

72

1,229

0,776

510896

50,0

40,0

5,0

12,0

6,0

-

94°00

6,82

66

1,944

1,228

510897

50,0

42,0

4,0

10,0

6,0

-

102°00

5,946

72

1,695

1,070

510898

50,0

42,0

8,2

8,2

5,0

-

99°00

7,001

70

1,995

1,260

510899

50,0

45,0

3,0

3,0

2,0

-

121°00

2,791

83

0,795

0,502

510900

50,0

45,0

4,0

3,0

5,0

-

116°00

3,249

81

0,926

0,585

510901

50,0

45,0

4,0

4,0

4,0

-

95°00

3,680

70

1,049

0,662

510902

50,0

45,0

4,0

4,0

4,0

-

118°00

3,680

81

1,049

0,662

510903

50,0

45,0

5,0

5,0

3,0

-

100°00

4,550

73

1,297

0,819

510904

50,0

45,0

7,0

7,0

5,0

1,2

120°00

6,324

82

1,802

1,138

510905

50,0

47,0

8,0

4,0

5,0

-

101°21

5,659

75

1,613

1,019

510906

50,0

48,0

6,0

4,0

5,0

-

120°00

4,748

85

1,353

0,855

511117

50,0

48,0

7,7

6,0

4,0

-

91°30

6,313

70,

1,799

1,136

510907

50,0

50,0

2,0

2,0

2,0

-

110°00

1,971

82

0,562

0,355

510908

50,0

50,0

3,0

3,0

3,0

-

102°00

2,935

78

0,836

0,528

510909

50,0

50,0

3,0

3,0

4,0

-

103°00

2,940

78

0,838

0,529

510910

50,0

50,0

4,0

4,0

4,0

-

105°00

3,885

79

1,107

0,699

510911

50,0

50,0

4,0

4,0

4,0

-

114°00

3,883

84

1,107

0,699

510912

50,0

50,0

4,0

4,0

4,0

-

122°00

3,877

87

1,105

0,698

510914

50,0

50,0

5,0

5,0

5,0

-

91°15

4,807

71

1,370

0,865

510915

50,0

50,0

5,0

5,0

5,0

0,5

94°00

4,811

73

1,371

0,866

510916

50,0

50,0

5,0

5,0

5,0

-

116°00

4,815

85

1,372

0,867

510917

50,0

50,0

5,0

5,0

5,0

-

119°22

4,812

86

1,371

0,866

510918

50,0

50,0

5,0

5,0

15,0

1,0

150°00

3,121

97

0,889

0,562

510919

50,0

50,0

5,0

11,0

5,0

-

117°00

7,722

85

2,201

1,390

510920

50,0

50,0

6,0

6,0

5,0

-

95°00

5,712

74

1,628

1,028

510921

50,0

50,0

6,0

6,0

6,0

-

100°00

5,738

77

1,635

1,033

510922

50,0

50,0

6,0

7,0

4,0

3,0

106°08

6,188

80

1,764

1,114

510923

50,0

50,0

6,0

9,0

4,0

3,0

102°43

7,084

78

2,019

1,275

511218

50,0

50,0

7,0

7,0

5,0

0,5

105°00

6,636

79

1,891

1,195

511118

50,0

50,0

7,0

7,0

6,0

-

115°00

6,653

84

1,896

1,198

511119

50,0

50,0

7,0

7,0

6,0

-

120°00

6,652

87

1,896

1,197

510924

50,0

50,0

8,0

8,0

5,0

-

114°30

7,567

84

2,157

1,362

510925

50,0

50,0

8,0

8,0

8,0

16,0

120°00

7,978

87

2,274

1,436

510926

50,0

50,0

10,0

10,0

10,0

20,0

120°00

9,966

87

2,840

1,794

511108

51,0

24,0

7,5

7,5

4,0

1,0

92°00

5,111

57

1,457

0,920

510928

51,0

45,0

10,0

24,0

10,0

-

133°00

15,341

88

4,372

2,761

510929

52,0

28,0

2,5

5,0

3,0

-

92°20

2,599

60

0,741

0,468

510930

52,0

28,0

2,5

5,0

3,0

-

105°31

2,618

65

0,746

0,471

510931

52,0

44,0

3,5

6,5

5,0

-

118°00

4,531

82

1,291

0,815

510932

52,0

50,0

3,5

6,0

3,5

-

91°00

4,639

73

1,322

0,835

510933

53,0

35,0

3,5

6,5

3,0

1,0

97°20

3,947

67

1,125

0,711

510934

54,0

30,0

2,5

2,5

2,5

-

106°00

2,055

69

0,586

0,370

511120

54,0

30,0

7,0

2,5

3,0

-

101°36

4,417

67

1,259

0,795

510935

54,0

40,0

3,5

3,5

5,0

-

117°00

3,182

80

0,907

0,573

510936

54,0

47,0

10,0

4,0

5,0

-

112°00

7,070

84

2,015

1,273

511121

54,0

50,0

4,0

6,0

5,0

0,5

94°00

4,981

76

1,420

0,897

510937

54,0

50,0

13,0

4,0

5,0

-

101°30

8,702

81

2,480

1,566

510938

55,0

18,8

3,2

4,5

6,0

6,0

115°00

2,518

65

0,718

0,453

511122

55,0

25,0

2,0

4,5

3,0

-

135°00

2,177

75

0,620

0,392

510940

55,0

25,0

2,5

2,5

3,0

-

94°00

1,958

62

0,558

0,352

510941

55,0

35,0

5,0

9,0

4,0

-

94°33

5,519

67

1,573

0,993

511216

55,0

38,0

2,5

5,0

5,0

1,0

94°30

3,204

69

0,913

0,577

510942

55,0

40,0

2,5

2,5

5,0

-

101°30

2,349

74

0,669

0,423

510943

55,0

42,5

20,0

10,0

10,0

-

133°00

14,417

90

4,109

2,595

510944

55,0

45,0

6,0

4,5

5,0

-

114°16

5,135

84

1,463

0,924

511123

55,0

50,0

5,0

5,0

5,0

0,5

101°20

5,070

81

1,445

0,913

510947

55,0

50,0

5,0

9,0

5,0

-

90°43

6,860

75

1,955

1,235

510946

55,0

50,0

8,0

6,0

4,0

3,0

117°00

7,107

90

2,025

1,279

510945

55,0

54,0

6,0

9,0

5,0

3,0

99°20

7,729

83

2,203

1,391

510948

56,0

40,0

2,0

2,5

3,0

-

105°00

2,086

77

0,595

0,376

510949

56,0

40,0

3,0

3,0

5,0

-

105°00

2,743

88

0,782

0,494

511160

56,0

40,0

3,0

3,0

5,0

0,5

131°00

2,745

88

0,782

0,494

510950

57,0

19,0

3,5

5,0

4,0

6,0

115°30

2,860

67

0,815

0,515

510951

57,0

19,0

3,5

6,0

4,0

5,0

115°00

3,025

67

0,862

0,544

510952

57,0

30,5

3,0

12,0

5,0

-

126°15

5,411

79

1,542

0,974

510953

57,0

43,0

2,5

2,5

5,0

-

108°42

8,456

82

0,700

0,442

510954

57,0

44,0

16,0

30,0

5,0

1,0

96°30

18,185

76

5,183

3,273

511124

57,0

48,0

4,0

10,0

5,0

-

95°00

6,771

78

1,930

1,219

510955

57,0

48,0

8,0

5,0

4,0

-

146°00

6,790

100

1,935

1,222

510956

58,1

50,0

5,0

12,0

5,0

-

91°30

8,378

78

2,388

1,508

510957

58,2

48,0

17,0

17,0

4,0

-

94°47

15,424

78

4,396

2,776

510958

58,0

17,0

3,0

6,0

4,0

-

115°00

2,651

67

0,755

0,477

510959

59,5

59,5

7,0

12,0

10,0

-

99°22

10,736

91

3,060

1,932

510960

60,0

25,0

2,5

2,5

2,5

-

113°00

2,080

73

0,593

0,374

510961

60,0

30,0

6,0

5,0

6,0

-

121°11

4,862

80

1,386

0,875

510962

60,0

40,0

4,0

6,0

4,0

-

94°45

4,609

75

1,314

0,830

510963

60,0

40,0

6,0

4,5

5,0

-

113°45

5,211

84

1,485

0,938

510964

60,0

45,0

10,0

7,0

4,0

-

99°00

8,579

80

2,445

1,544

510965

60,0

47,0

4,0

6,0

5,0

3,0

105°00

5,049

85

1,439

0,909

510966

60,0

49,0

12,0

4,0

5,0

-

100°42

8,850

84

2,522

1,593

510967

60,0

50,0

4,0

4,0

5,0

-

123°02

4,254

97

1,213

0,766

510968

60,0

50,0

5,0

3,0

5,0

-

95°42

4,408

82

1,256

0,793

510969

60,0

50,0

4,5

4,5

6,0

-

124°20

4,751

97

1,354

0,855

510970

60,0

50,0

8,0

5,0

8,0

-

116°00

6,999

93

1,995

1,260

510971

60,0

54,0

5,0

4,0

3,0

-

96°00

4,995

85

1,423

0,899

511125

60,0

54,0

8,0

9,0

6,0

-

110°00

9,150

93

2,608

1,647

510972

60,0

55,0

14,5

4,0

5,0

-

111°48

10,718

95

3,055

1,929

510973

60,0

58,0

15,0

8,0

10,0

-

115°00

12,893

100

3,674

2,321

510974

60,0

60,0

5,0

5,0

4,0

-

114°00

5,825

101

1,660

1,048

511171

60,0

60,0

6,0

6,0

6,0

0,5

101°00

6,939

93

1,978

1,249

510975

60,0

60,0

6,0

6,0

10,0

-

150°00

6,295

116

1,794

1,133

510977

60,0

60,0

8,0

8,0

5,0

-

116°34

9,175

102

2,615

1,652

510976

60,0

60,0

9,0

9,0

10,0

-

126°00

10,097

107

2,878

1,817

510978

61,0

40,0

4,0

12,0

5,0

-

131°55

7,213

93

2,056

1,298

511126

61,0

40,0

25,0

35,0

1,0

1,0

120°00

24,487

88

6,979

4,408

510979

61,0

51,0

5,0

3,0

5,0

-

91°30

4,486

81

1,278

0,807

511127

61,0

51,0

6,0

8,0

5,0

-

98°00

7,359

85

2,097

1,325

511184

62,0

42,0

6,0

5,5

5,0

1,0

95°00

5,768

78

1,644

1,038

510980

62,0

45,5

6,0

2,0

4,0

-

100°40

4,563

83

1,301

0,821

510981

62,5

37,0

5,0

5,0

4,0

-

92°00

4,765

74

1,358

0,858

510982

62,5

51,5

7,0

13,0

10,0

-

92°57

10,411

83

2,967

1,874

510984

63,0

30,0

2,0

2,0

3,0

-

104°00

1,834

76

0,523

0,330

511128

63,0

47,0

5,0

11,6

6,0

-

126°09

8,361

98

2,383

1,505

510985

63,0

47,0

8,0

11,6

6,0

-

129°05

9,977

100

2,843

1,796

511167

63,0

47,0

8,0

13,6

6,0

-

129°05

10,916

100

3,111

1,965

511129

64,0

40,0

6,0

13,0

3,0

-

94°00

8,346

78

2,379

1,502

511130

64,0

50,0

3,0

8,0

5,0

-

112°20

5,797

95

1,652

1,044

510986

64,3

57,3

29,3

10,0

5,0

-

95°00

22,090

90

6,296

3,976

510987

65,0

20,0

1,5

1,5

2,5

-

94°30

1,265

69

0,361

0,228

511131

65,0

20,0

1,5

1,8

3,0

-

115°30

1,309

76

0,373

0,236

510988

65,0

25,0

4,0

5,0

4,0

-

108°00

3,708

77

1,057

0,667

510989

65,0

30,0

3,0

4,0

6,0

-

106°00

3,077

78

0,877

0,554

510990

65,0

39,0

8,0

24,0

5,0

-

95°50

12,998

79

3,705

2,340

510991

65,0

40,0

3,0

4,0

6,0

-

105°00

3,477

85

0,991

0,626

510992

65,0

40,0

3,5

3,5

4,0

-

112°30

3,585

88

1,022

0,645

510993

65,0

40,0

5,5

2,0

5,0

-

95°00

4,321

79

1,232

0,778

510994

65,0

40,0

6,0

4,0

10,0

-

135°20

4,947

98

1,410

0,890

510995

65,0

41,0

2,5

2,5

2,5

-

100°00

2,605

83

0,742

0,469

510996

65,0

48,0

15,0

31,0

5,0

1,0

95°30

20,569

84

5,862

3,702

511132

65,0

50,0

5,0

5,0

5,0

0,5

95°00

5,562

85

1,585

1,001

510997

65,0

50,0

8,0

5,0

5,0

-

97°00

7,388

87

2,106

1,330

511133

65,0

50,0

10,5

5,0

6,0

-

97°00

8,932

87

2,546

1,608

510998

65,0

50,0

11,0

5,0

5,0

1,0

96°15

9,214

86

2,626

1,659

511134

65,0

54,0

8,0

5,0

5,0

-

101°00

7,604

99

2,167

1,369

511135

65,0

55,0

6,0

4,0

3,0

-

99°00

5,909

91

1,684

1,064

511136

65,0

65,0

7,0

8,0

6,0

-

93°00

9,260

95

2,570

1,666

510999

65,0

55,0

14,0

7,0

4,0

-

99°00

12,172

91

3,469

2,191

511000

65,0

60,0

3,0

3,0

6,0

-

121°11

3,627

109

1,034

0,653

511001

65,0

60,0

7,0

26,0

6,0

-

102°00

19,092

97

5,441

3,436

511002

65,0

65,0

6,0

12,0

5,0

-

94°24

11,091

95

3,161

1,996

511003

66,0

38,0

2,5

2,5

2,5

-

106°00

2,555

85

0,728

0,460

511004

66,0

38,0

6,0

6,0

5,0

-

96°00

5,955

80

1,697

1,072

511168

66,0

66,0

10,0

13,0

35,0

2,5

103°00

5,077

103

4,297

2,714

511005

67,0

29,0

3,2

3,2

4,0

0,5

94°00

3,004

75

0,856

0,541

511006

67,0

42,0

7,0

25,0

5,0

-

95°20

13,789

82

3,930

2,482

511007

67,0

44,5

3,5

4,0

5,0

-

99°02

4,037

86

1,150

0,727

511008

68,0

34,0

8,0

8,0

6,0

-

126°56

7,732

93

2,204

1,392

511009

68,0

48,5

5,5

5,0

6,0

-

102°43

5,976

92

1,703

1,076

511010

68,0

50,0

6,0

6,0

6,0

-

115°00

6,816

100

1,942

1,227

511011

70,0

32,6

7,2

7,2

8,0

1,0

96°00

7,019

80

2,000

1,263

511012

70,0

45,0

4,0

12,0

5,0

-

97°00

7,851

88

2,238

1,413

511013

70,0

55,0

5,0

4,0

4,0

1,0

95°00

5,542

93

1,580

0,998

511137

70,0

55,0

5,5

4,0

5,0

-

94°00

5,890

92

1,679

1,060

511014

70,0

60,0

7,0

10,0

10,0

-

109°30

10,413

106

2,968

1,874

511138

70,0

60,0

10,0

13,0

8,0

-

97°00

13,749

98

3,918

2,475

511015

70,0

62,0

4,0

12,0

6,0

-

92°00

9,858

95

2,810

1,775

511139

70,0

70,0

6,0

6,0

5,0

0,5

91°15

8,099

100

2,303

1,458

511017

70,0

70,0

6,0

6,0

8,0

-

120°00

8,076

121

2,302

1,454

511140

70,0

70,0

6,0

6,0

5,0

0,5

130°00

8,141

127

2,320

1,465

511016

70,0

70,0

7,0

7,0

8,0

-

105°00

9,456

111

2,695

1,702

511018

70,0

70,0

8,0

8,0

6,0

-

94°00

10,667

102

3,040

1,920

511019

70,0

70,0

8,0

8,0

6,0

-

114°00

10,755

117

3,065

1,936

511020

70,0

70,0

8,0

8,0

6,0

-

115°00

10,757

118

3,066

1,936

511021

70,0

70,0

8,0

8,0

6,0

-

135°00

10,765

129

3,068

1,938

511022

70,5

48,5

4,0

4,0

4,0

-

100°00

4,644

92

1,323

0,836

511023

70,5

48,5

5,0

5,0

4,0

-

101°00

5,760

93

1,642

1,037

511141

72,0

24,0

7,5

7,5

4,0

0,5

92°00

6,688

77

1,906

1,204

511024

72,0

53,0

19,0

19,0

5,0

0,5

91°26

20,280

90

5,780

3,650

511025

73,0

27,0

2,5

2,5

3,0

-

134°30

2,433

93

0,693

0,438

511026

73,0

40,0

2,0

2,0

3,0

-

115°00

2,226

97

0,634

0,401

511027

73,0

45,0

5,0

5,0

6,0

-

121°12

5,687

104

1,621

1,024

511028

73,0

65,0

5,0

6,0

6,0

-

121°11

7,312

120

2,084

1,316

511029

74,0

42,0

6,0

10,0

5,0

-

99°22

8,175

91

2,330

1,471

511030

74,0

44,0

2,5

2,5

2,5

-

100°00

2,905

92

0,828

0,523

511142

74,0

52,0

2,5

2,5

2,5

-

100°00

3,105

98

0,885

0,559

511031

75,0

30,0

4,0

4,0

4,0

-

102°00

4,085

86

1,164

0,735

511032

75,0

35,0

8,0

8,0

8,0

0,5

135°00

8,235

103

2,347

1,482

511033

75,0

45,0

2,5

2,5

5,0

-

110°00

2,951

100

0,841

0,531

511034

75,0

50,0

5,0

5,0

5,0

-

112°00

6,069

105

1,730

1,092

511035

75,0

50,0

5,0

5,0

5,0

-

117°00

6,064

107

1,728

1,092

511036

75,0

51,0

2,5

2,5

2,5

-

100°00

3,105

98

0,885

0,559

511037

75,0

52,0

14,0

5,0

4,0

-

94°40

12,516

95

3,567

2,253

511038

75,0

52,0

15,0

6,0

5,0

2,0

94°40

13,611

95

3,879

2,450

511039

75,0

55,0

6,0

6,0

4,0

1,0

92°30

7,485

95

2,133

1,347

511040

75,0

55,0

6,0

6,0

4,0

1,0

96°00

7,499

98

2,137

1,350

511041

75,0

58,0

6,0

8,0

3,0

-

132°40

8,911

122

2,540

1,604

511042

75,0

75,0

10,0

10,0

10,0

20,0

120°00

14,966

130

4,265

2,694

511043

75,2

20,0

1,8

2,0

3,0

-

96°00

1,735

80

0,495

0,312

511044

78,0

26,5

3,0

4,0

3,0

-

101°00

3,311

87

0,944

0,596

511045

80,0

50,0

6,0

6,0

6,0

-

126°56

7,512

117

2,141

1,352

511144

80,0

65,0

4,0

15,0

4,0

0,5

93°20

12,449

106

3,548

2,241

511145

80,0

70,0

6,0

12,0

8,0

1,0

105°29

12,732

120

3,629

2,292

511046

80,0

70,0

8,0

6,0

5,0

-

91°19

10,183

108

2,902

1,833

511047

80,0

80,0

6,0

6,0

10,0

-

120°00

9,211

139

2,625

1,658

511048

80,0

80,0

8,0

8,0

5,0

-

98°00

12,277

121

3,499

2,210

511050

80,1

55,3

20,0

8,1

6,0

1,5

96°30

19,187

102

5,468

3,454

511051

81,0

50,0

9,0

11,0

5,0

-

93°00

11,898

97

3,391

2,142

511052

82,0

45,0

5,0

11,0

5,0

-

119°23

8,788

111

2,505

1,582

511053

82,0

45,0

5,0

11,0

5,0

-

126°44

9,834

115

2,518

1,590

511170

82,0

60,0

5,0

13,0

5,0

0,5

119°23

11,659

123

3,323

2,099

511169

82,0

60,0

5,0

13,0

5,0

0,5

126°44

11,739

127

3,346

2,113

511054

84,5

31,0

2,5

5,0

5,0

-

110°00

3,581

99

1,021

0,645

511181

85,0

45,0

5,0

13,0

5,0

0,5

119°23

9,859

114

2,810

1,775

511055

85,0

60,0

6,0

20,0

4,0

1,0

95°00

16,111

108

4,592

2,900

511056

85,0

65,0

17,0

16,0

10,0

-

106°00

22,838

120

6,509

4,111

511057

85,0

85,0

7,0

39,5

5,0

-

98°00

37,897

128

10,801

6,822

511058

86,0

30,0

4,5

12,0

6,0

-

111°25

7,198

101

2,052

1,293

511059

90,0

25,0

3,2

6,5

4,5

-

108°00

4,373

101

1,246

0,787

511060

90,0

38,0

5,0

8,0

6,0

-

128°34

7,263

118

2,070

1,307

511061

90,0

45,0

2,5

2,5

2,5

-

113°00

3,330

115

0,949

0,599

511062

90,0

45,0

2,5

2,5

2,5

-

123°00

3,326

121

0,948

0,599

511063

90,0

52,0

5,0

5,0

5,0

-

93°00

6,910

106

1,969

1,244

511064

90,0

65,0

3,0

3,0

5,0

-

95°00

4,609

116

1,314

0,830

511065

90,0

80,0

5,0

5,0

5,0

-

126°44

8,300

152

2,366

1,494

511066

90,0

80,0

18,0

36,0

5,0

-

100°30

39,939

131

11,382

7,189

511067

90,0

86,0

18,0

36,0

5,0

-

99°00

41,913

134

11,945

7,544

511146

92,0

74,0

9,0

9,0

5,0

-

97°00

14,260

125

4,064

2,567

511068

95,0

35,0

7,0

8,0

5,0

-

108°00

9,047

111

2,578

1,628

511069

95,0

90,0

43,0

30,0

5,0

-

100°00

57,203

142

16,303

10,296

511147

99,0

81,0

15,0

20,0

5,0

3,0

97°00

28,435

135

8,104

5,118

511070

100,0

35,0

2,0

2,0

3,0

0,5

101°30

2,676

112

0,763

0,482

511071

100,0

40,0

5,0

5,0

5,0

-

105°00

6,821

117

1,944

1,228

511073

100,0

78,0

10,0

10,0

5,0

1,0

107°00

17,065

144

4,864

3,072

511074

100,0

78,0

10,0

10,0

5,0

-

112°00

17,113

148

4,877

3,080

511148

100,0

83,5

4,0

5,0

5,0

-

96°35

8,036

137

2,290

1,447

511075

100,0

95,0

5,0

5,0

30,0

-

153°00

1,759

190

0,501

0,317

511076

100,0

95,0

5,0

8,0

30,0

-

153°00

4,662

190

1,329

0,839

511077

100,0

100,0

7,0

,7,0

5,0

-

105°00

13,636

159

3,886

2,455

511078

100,0

100,0

12,0

12,0

10,0

24,0

120°00

23,751

173

6,826

4,311

511079

101,0

63,0

10,0

11,5

6,0

1,0

135°00

16,715

152

4,764

3,009

511149

101,2

101,2

20,5

22,0

5,0

5,0

100°00

39,228

155

11,180

7,061

511080

102,0

27,0

2,7

3,3

5,0

-

113°00

3,570

115

1,018

0,643

511081

102,0

70,5

6,5

19,0

65,0

-

95°00

26,024

129

7,417

4,684

511150

108,0

56,0

11,0

8,0

5,0

0,5

93°30

15,581

125

4,441

2,805

511151

110,0

51,0

7,0

7,0

6,0

0,5

96°30

10,888

126

3,103

1,960

511082

110,0

60,0

8,5

7,0

5,0

1,0

97°00

13,060

132

3,722

2,351

511083

110,0

60,0

12,0

8,5

5,0

1,0

92°00

17,364

127

4,949

3,126

511084

110,0

78,0

28,0

15,0

5,0

3,0

98°51

39,056

144

11,131

7,030

511152

112,0

43,0

7,0

11,0

6,0

0,5

120°00

12,107

139

3,450

2,179

511153

115,0

85,0

4,5

5,0

5,0

1,0

100°00

9,263

154

2,640

1,667

511085

115,0

100,0

13,0

55,0

5,0

-

97°30

64,877

162

18,490

11,678

511154

115,0

105,0

8,0

8,0

8,0

6,0

129°00

17,197

199

4,901

3,095

511086

119,0

46,0

20,0

10,0

10,0

-

129°47

27,522

153

7,844

4,954

511155

119,5

114,5

29,0

22,0

5,0

5,0

96°00

54,126

174

15,426

9,743

511087

120,0

70,0

27,0

6,0

5,0

1,0

96°30

34,443

146

10,101

6,380

511088

127,0

38,2

5,0

8,0

6,0

-

97°34

9,114

137

2,597

1,640

511089

129,0

52,0

7,0

13,0

4,0

-

91°20

14,938

140

4,257

2,689

511090

130,0

75,0

17,0

25,0

20,0

-

126°12

37,758

185

10,761

6,796

511091

130,0

95,0

5,0

8,0

30,0

-

153°00

6,162

219

1,756

1,109

511156

149,5

139,5

27,0

24,0

5,0

5,0

96°00

68,015

215

19,384

12,243

511092

153,0

46,0

5,0

12,0

10,0

-

96°30

12,818

165

3,653

2,307

511157

160,0

130,0

36,0

22,0

18,0

-

92°00

79,223

210

22,578

14,260

511165

185,0

40,0

7,0

7,0

8,0

1,0

119°00

15,358

207

4,377

2,764

511093

198,0

32,0

3,0

9,0

10,0

-

128°16

8,499

219

2,422

1,530

511094

250,0

160,0

30,0

50,0

18,0

2,0

92°00

141

301

40,246

25,418

Примечания:

1. Значения радиусов r, не приведенные в таблице, должны соответствовать требованиям ГОСТ 8617, ГОСТ 19657.

2. Радиусы притупления острых кромок (r1, r2, r3, r4) должны соответствовать требованиям ГОСТ 8617, ГОСТ 19657.

3. Теоретическая масса 1 м профиля из алюминиевых сплавов вычислена по номинальным размерам при плотности 2,85 г/см3, что соответствует плотности алюминиевого сплава марки В95.

Теоретическая масса 1 м профиля из магниевых сплавов вычислена по номинальным размерам при плотности 1,80 г/см3, что соответствует плотности магниевого сплава марки МА14.

4. Переводные коэффициенты для вычисления приближенной теоретической массы 1 м профиля из алюминиевых и магниевых сплавов приведены в приложении 1.

5. Соответствие номеров профилей ранее действующим обозначениям приведено в приложении 2.

ПРИЛОЖЕНИЕ 1

Справочное

1. Переводные коэффициенты для вычисления приближенной теоретической массы 1 м профиля из алюминия и алюминиевых сплавов

Алюминий всех марок:                               - 0,950

Сплавы марок:       АМц                             - 0,958

                                 АМцС                          - 0,958

                                 АМг2                            - 0,940

                                 АМг3                            - 0,937

                                 АМг5                            - 0,930

                                 АМг6                            - 0,926

                                 1561                              - 0,930

                                 Д1                                 - 0,982

                                 Д16                               - 0,976

                                 Д16ч                             - 0,976

                                 Д19ч                             - 0,968

                                 Д20                               - 0,996

                                 АВ                                - 0,947

                                 К48-2пч                        - 0,972

                                 К48-2                            - 0,972

                                 АД31                            - 0,950

                                 АД33                            - 0,951

                                 АД35                            - 0,954

                                 1161                              - 0,972

                                 1163                              - 0,975

                                 1915                              - 0,972

                                 1920                              - 0,954

                                 1925                              - 0,972

                                 1935                              - 0,977

                                 1973                              - 1,000

                                 1985ч                            - 0,948

                                 1980                              - 0,968

                                 АД31Е                          - 0,950

                                 ВД1                              - 0,982

                                 АВД1-1                        - 0,982

Сплавы марок:       АКМ                             - 0,970

                                 М40                              - 0,965

                                 АК4                              - 0,970

                                 АК6                              - 0,962

                                 АК4-1                           - 0,982

                                 АК4-1ч                         - 0,982

                                 ВАД1                           - 0,968

                                 ВД17                            - 0,965

                                 1161                              - 0,972

                                 1163                              - 0,975

                                 1420                              - 0,867

                                 1973                              - 1,000

2. Переводные коэффициенты для вычисления приближенной теоретической массы 1 м профиля из магниевых сплавов.

Сплавы марок:       МА1                             - 0,978

                                 МА2                             - 0,989

                                 МА2-1                          - 0,990

                                 МА8                             - 0,989

                                 МА12                           - 0,989

                                 МА2-1пч                      - 0,990

ПРИЛОЖЕНИЕ 2

Справочное

Таблица 5

Номер профиля

Обозначение профиля по каталогу 1966 г.

Обозначение профиля по чертежам

510001

П1492-2

НП172-2, ПК42-15, ПС4-24

510002

П1492-4

НП172-1, ПК42-14, ПС4-23

510005

П1492-8

ПК49-4

510008

-

ПК13829

510009

-

ПК15040

510010

П1492-13

НП869-1

510011

П1492-14

ПК45-5

510013

П1492-18

ПК45-6

510014

-

ПК4492

510015

-

ПК4634

510016

-

ПК8769

510017

-

ПК3228

510018

-

ПК2401

510020

-

ПК18580-2

510021

-

ПК18580-1

510023

-

ПК4688

510041

П1500-4

ПК42-1, НП28-11, ПСЧ-1

510042

П1500-6

Н754-Е1, ПК42-20, НП88-1, ПСЧ-29

510043

-

ПК17933

510044

П1500-8

ПС885-25,5

510045

П1500-10

ПК42-63, ПП63-25

510046

П1500-11

ПК13331-1

510047

П1500-12

ПВ1570, ПП63-17, ПК42-65, С2139

510048

П1500-4

ПК42-66, ПП63-18

510049

П1500-16

ПП63-27, ПК42-67

510050

П1500-18

ПК42-41, НП28-1

510051

П1500-20

ПР212-1, ПК42-42, ПП63-6, НП28-3

510052

П1500-22

ПК42-68, ПП63-26

510053

П1500-24

Н754-Е2, ПК42-21, НП28-7, НП88-2, ПС4-30

510054

П1500-26

ПР212-2, НП19-1, ПП63-24, ПС4-2, ПК43-10, ПП132-1, НП82-1, НП28-8, НП28-8А

510055

П1500-28

С155

510056

П1500-30

ПК42-2, ПС4-3

510057

П1500-32

ПР212-3, ПК42-61, ПП63-11, ПС4-4

510058

П1500-34

Н754-Е4, НП88-4, ПС4-31, ПК42-22

510059

П1500-36

С59-1, ПП63-28

510060

-

С1182-5, НП1217-2

510061

П1500-38

ПК42-64, НП28-12

510062

П1500-40

ПК42-48, НП28-9

510063

-

ПК17738

510064

П1500-42

ПК42-45, НП28-5

510065

П1500-44

ПП63-29, ПК42-69

510066

-

С1155-4, ПК14549-4

510067

П1500-46

ПК126

510068

П1500-48

ПК42-10, ПС4-17

510069

П1500-49

ПК13331-2

510070

П1500-50

ПК42-46, ПК42-47, НП28-85, НП28-6

510072

-

ПК15869

510073

П1500-54

С115-1

510074

П1500-56

Н754-Е17, ПК42-31, ПС4-40

510075

П1500-58

ПК180-1

510076

П1500-60

Н754-Е18, ПК42-36

510077

П1500-62

ПР212-4, ПК42-62, ПП63-12

510078

П1500-63

Б2, ПК42-37

510079

П1500-64

С59-2

510080

П1500-66

ПР212-5, ПК42-59, ПП63-8

510081

П1500-68

ПР212-6, ПК42-58, ПП63-7

510082

П1500-70

Н754-Е8, Н4071, ПК42-24, НП88-8, ПС4-33

510083

П1500-72

С59-3

510084

-

ПК15900

510085

П1500-74

НП576-1

510086

П1500-76

ПК42-50, ПП63-1

510087

-

С1182-1, НП1217-1

510088

П1500-78

ПК42-44, НП28-4

510089

П1500-80

ПК42-43, НП28-2

510090

П1500-82

ПК42-49, НП28-10

510091

П1500-83

ПК13331-3

510092

П1500-84

С59-4, ПК42-72

510093

-

С1352, ПК15409

510094

П1500-86

С101, ПС4-45

510095

П1500-88

С100, ПС4-44

510096

-

С1316, ПК15177

510097

П1500-90

ПР212-7, ПК42-60, ПП63-9

510098

П1500-92

ПР212-8, ПК42-55, ПП63-2, Б3

510099

П1500-94

Б3А, ПК42-39

510100

П1500-96

С375, ПК42-13, НП159-2, ПС4-21, НП251-1

510101

П1500-98

ПР212-9, ПК42-11, ПП63-13

510103

П1500-102

ПК42-5

510104

П1500-103

ПК42-5, ПК180-2

510105

П1500-104

С59-5

510106

П1500-106

ПК43-9, ПП132-10, ПС4-34, ПС4-5

510107

-

ПК13758

510108

-

С1259-2, ПК15119-2

510109

П1500-108

С1409, ПК42-53, ПП63-15

510110

П1500-109

С456-22

510111

П1500-110

ПК42-6

510112

-

С1228, ПС4-11

510113

-

С1440, ПК15919

510114

П1500-111

ПК1-110

510115

-

С1040, ПК14028, НП2027

510116

П1500-112

Н754-Е15, ПК42-35

510117

-

ПК15873

510118

П1500-114

ПС4-13, ПК42-8

510119

П1500-116

ПК42-7, ПС4-12

510120

П1500-118

ПК180-3

510121

П1500-119

ПК13505

510122

П1500-120

С315, C59-6, ПК42-120, ПК42-80

510123

П1500-121

ПК13278

510124

П1500-134

ПС4-14

510125

П1500-124

ПК42-73

510126

П1500-125

ПК13503

510127

-

ПК15897

510128

П1500-126

ПК2-270

510132

П1500-133

ПК13775

510133

П1500-140

С1669, С452-2

510134

-

C1182-2

510135

-

С1182-3

510136

П1500-128

ПК0484

510137

П1500-130

Н790-Е11, НП242-2, ПС4-28

510138

П1500-132

С1604-1, ПК42-19

510139

-

С1604-2

510140

П1500-136

ПП132-9, ПС4-7, ПС4-19

510141

П1500-138

ПП132-8, ПС4-6

510142

-

С1232, ПК14656

510143

П1500-139

ПК1-115

510144

П1500-141

ПК14168

510145

П1500-142

ПК43-12

510146

П1500-144

С115-2, С1704

510147

П1500-146

С115-3, ПК3126

510148

П1500-148

ПК42-88

510149

П1500-150

Б-7а, ПК42-40

510150

П1500-152

ПК43-11

510151

П1500-154

Н754-Е14, ПК42-34

510152

П1500-143

С828, ПК12420

510153

-

ПК18322

510154

П1500-155

ПК13366

510155

П1500-158

С411-2

510156

П1500-160

С411-3

510157

-

ПК18160

510158

-

ПК15439

510159

П1500-162

ПС4-41, ПК42-32, С1286

510160

-

ПК15299

510161

-

С1543, ПК16367

510162

П1500-164

С965, ПК42-77, ПП63-30

510163

П1500-166

ПК42-101

510164

П1500-168

С965, ПК42-77

510165

-

С1151, НП1786

510166

П1500-170

ПК42-87

510167

П1500-171

ПК1-116

510168

П1500-172

ПК2-242, ПП132-12

510169

-

ПК13695

510170

-

ПС4-23

510172

-

ПК18321

510173

-

С1182-4

510174

П1500-208

ПК42-4, ПС4-9

510175

-

ПК15410, С1353

510176

П1500-174

С949, ПК42-78

510177

П1500-176

ПК180-5

510178

П1500-178

ПК180-6

510179

П1500-179

ПК11546

510180

-

ПК14078

510181

П1500-181

ПК13230

510182

П1500-180

С1154-2, ПС4-26, ПК42-17

510183

П1819-63

ПК0743-2, ПК16554-4, С1604-4

510184

П1500-182

ПК15118-6, С115-4

510185

П1500-184

ПК3127, С115-5

510186

П1500-186

ПК4343, С115-6

510187

П1500-188

ПС4-20, ПК42-12, С825, НП159-1

510188

П1500-190

ПП63-3, ПК42-51

510189

П1500-192

ПР212-10, ПП63-4

510190

П1500-194

ПП132-3

510191

П1500-196

ПС4-35

510192

-

ПК16154, С1478

510193

П1500-198

ПП132-7, ПП422-1, ПС4-7, ПК43-6

510194

П1492-6

ПК49-2/1

510195

П1492-7

ПК49-2/2

510196

П1500-200

ПС4-57, ПК42-82

510197

П1814-13

ПП63-23, ПК12958, ПК42-83

510198

П1500-204

ПС4-53, ПК2-250

510199

П1500-206

НП-343-1, ПК134

510200

-

ПК14961

510201

П1500-210

ПК42-74, ПВ1333, ПП63-20

510202

П1500-212

ПК42-92

510203

П1500-213

ПК43-30

510205

П1500-216

С59-7А

510206

-

ПК17105-1

510207

П1500-218

ПК11247

510208

П1500-220

С732, ПК42-18, ПС4-27

510209

П1500-226, П1500-221

ПК1700, ПК9691

510210

-

ПК15914

510211

П1500-224

С1554-1, С909-1, С1155-1, ПС4-51

510212

П1500-222

ПС4-52, С1554-2, С909-2

510213

-

ПК14079

510214

П1500-225

ПК11983

510215

-

ПК14082

510216

П1500-228

С694, ПК43-31

510217

П1500-217

ПК2-255, ПС4-58

510218

П1500-231

С824

510219

П1500-232

С414-2

510220

П1500-234

С414-1

510221

П1500-236

ПС4-25, НП171-1, ПК42-16

510222

П1500-240

ПК60-2, С452-1

510223

П1500-242

С452-4А, С452-4

510224

П1500-238

ПС4-54

510225

-

ПП132-13

510226

П1500-243

ПК11947

510227

П1500-241

ПК11948

510228

П1500-245

ПК11950

510229

-

ПК17182

510230

П1500-244

С115-7

510231

П1500-246

ПП132-11

510232

-

ПК15292

510233

П1500-248

ПК180-4

510234

-

ПК18319

510235

П1500-256

ПС4-56

510236

П1500-197

ПК11981

510237

-

С1237

510238

П1500-258

ПК42-54, С1024, ПП63-16

510240

П1500-259

ПК12754

510241

П1500-261

ПК11185

510242

-

ПК14570

510243

П1500-263

ПК13274

510244

-

ПК16159, С1483

510245

П1492-12

ПК11393

510246

П1500-260

ПК41-2

510247

-

С1414-5, ПК15716

510248

-

С1414-3, ПК15705

510249

-

ПК15124-1, С456-28

510250

-

ПК15706, С1414-4

510251

-

С456-27

510252

-

ПК17910

510253

-

ПК18155

510254

-

ПК15717, С1414-6

510255

-

С456-26

510256

-

ПК15704, С1414-2

510257

-

С456-30, ПК15124-3

510258

-

ПКС1414-1, ПК15703

510259

-

С456-29, ПК15124-2

510260

П1500-265

ПК12705

510261

П1500-267

ПК12706

510262

П1500-269

С750, ПК11985

510263

П4508

ПК27, ПП387

510264

П1500-271

С456-21

510265

П1500-262

С456-9, НП1688

510266

П1500-264

С456-8А

510267

П1500-266

С456-7

510268

П1500-273

С456-20

510269

П1500-268

С456-6

510270

П1500-275

С456-19

510271

П1500-270

С456-4

510272

П1500-272

С456-5

510273

П1500-274

С456-3

510274

П1500-276

С456-2

510275

П1500-278

С456-1

510276

П1500-280

ПП63-31, ПК42-84, С1899

510277

-

ПК12428

510278

-

ПК12432

510279

-

ПК17792

510280

П1796

НП17-1, ПК53

510281

П1500-284

ПК180-7

510282

П1500-282

ПК11445

510283

-

С1546, ПК16370

510284

-

ПК16452, С1563

510285

-

С1547, ПК16371

510286

-

С1643, ПК16585

510287

П1500-307

ПК13052

510288

П1500-287

ПК11446

510289

-

С1604-6

510290

П1500-288

ПК42-52

510291

П1500-290

С402, ПВ1807

510292

П1500-292

ПК42-98

510293

П1500-294

ПК43-1, ПС4-55

510294

-

ПК35-9

510295

П1500-296

С447-2

510296

П1500-298

С447-1

510297

П1500-299

ПК12707

510298

-

ПК17837

510299

П1500-301

ПК11810

510300

П1500-303

ПК0745-1

510301

П1500-305

ПК0745-2

510302

-

ПК18307

510303

-

С456-24

510304

П1500-300

С452-3

510305

П1500-309

ПК0930

510306

-

С1484, ПК16160

510307

-

С456-25

510308

П1500-302

С154

510309

П1500-304

ПК42-29, ПС4-38

510310

П1500-311

ПК11707

510311

П1500-313

ПК9636

510313

П1500-315

ПК11946

510314

П1500-308

С456-13

510315

П1500-317

ПК1-117

510316

П1500-310

С456-11

510317

П1500-312

ПК12522, ПС4-60, С456-10

510318

П1500-314

ПС4-48, ЭН714

510319

П1500-319

ПК13367

510320

П1500-316

ПК52, ПС4-43, ПК52-1

510321

П1500-318

С456-15

510322

П1500-320

ПК43-5, ПП132-6, ПС4-15

510323

-

ПК18097

510324

П1500-322

ПС4-50, ЭН764

510325

П1500-324

ПС5-47, ЭН713

510326

П1500-326

ПК11156, ЭАН803

510327

П1500-328

ПС4-42, ПК42-33

510328

П1500-330

ПС4-49, ЭН762

510329

П1500-332

ПК42-27, ПС4-36

510330

-

ПК42-102, ПВ742

510331

-

ПК14080

510333

П1500-334

ПК42-28, НП308-2

510334

П1500-336

ПС4-16

510336

П1500-340

ПС4-39, ПК42-30

510337

П1500-342

ПС4-46, ЭН797

510338

-

ПК19216

510339

-

ПК7038, С2197, ПК7038-1

510340

-

ПК2663

510341

-

ПК20057

510342

-

ПК19836

510343

-

ПК8643

510344

-

ПК2713

510345

-

ПК19336, С2089

510346

-

ПК19884-2

510347

-

ПК19884-1

510348

-

ПК17834, С1856

510349

-

ПК18485

510350

-

С1349-3, ПК15398

510351

-

ПК19215

510352

-

ПК18491

510353

-

ПК2890

510354

-

С1836, ПК17754

510355

-

ПК19765

510356

-

ПК19768

510357

-

ПК19764-2

510358

-

ПК19480

510359

-

ПК19481

510360

-

ПК13345

510361

-

ПК18377

510362

-

ПК18278

510363

-

ПК19716

510364

-

ПК19718

510365

-

ПК19551

510366

-

ПК19556

510367

-

ПК19715

510368

-

ПК19553

510369

-

ПК19478

510371

-

ПК17631, С1795

510372

-

ПК19897

510374

-

ПК19390

510376

-

ПК8837

510377

-

ПК19160

510378

-

ПК18288

510379

-

ПК18422-1

510380

-

ПК18422-2

510382

-

ПК18940

510383

-

ПК18581

510384

-

ПК3041

510386

-

ПК4913

510387

-

С1767, ПК17430

510388

-

ПК8801

510389

-

С1765, ПК17428

510391

-

ПК4358

510392

-

ПК4450

510393

-

ПК4444

510395

-

ПК4352

510501

П1498-4

ПС3-125, ПК66-103, НП1338-1

510502

П1498-8

ПК70-15

510503

П1498-10

С47А, Э0Н682

510504

П1498-12

ПС2-195, С199, ПК2-205

510505

П1498-14

ПК196, ПС3-116

510506

П1498-17

ПК12083, С756

510507

П1498-18

ПК49-5

510508

-

ПС520

510509

П1498-30

ПК11520

510510

-

ПК13692

510511

П1498-20

ПП133-2, ПК70-2

510512

П1498-22

ПП133-1, ПК70-1

510513

П1498-24

ПП133-3, ПК70-3

510514

П1498-26

ПП133-10, ПК10

510515

П1498-28

ПС3-110

510516

-

ПК14617, С1212

510517

П1504-222

ПС520-2

510518

-

ПК14887

510519

П1498-32

ПС3-111

510520

П1498-34

ПП133-18

510521

-

ПК16524

510522

-

ПК14575

510523

П1498-35

ПК49-3

510524

П1498-38

ПК49-6

510525

П1498-42

ПС3-45, ПК66-39

510526

П1498-40

ПС3-46, НП172-4, ПК66-40

510527

П1498-44

ПС3-56, ПК69

510528

-

ПК01065

510529

П1498-46

ПП133-13

510530

П1498-48

ПК70-11, ПП133-11

510531

П1498-50

ПК70-12

510532

П1498-52

ПС3-128

510533

П1499-3

ПК13308

510534

П1498-54

ПС3-119

510535

-

ПК12573

510536

П1498-56

ПП133-20

510537

П1498-58

ПП133-19

510538

-

ПК15515

510539

П1498-60

ПК2-267

510540

-

ПК18030

510541

П1498-62

ПП133-4, ПК70-4

510542

П1499-5

ПС3-78, ПК93

510543

-

ПК16336

510544

П1498-66

ПК2-268

510645

П1498-68

ПК70-22-1

510546

П1498-70

ПК70-22-2

510547

П1498-72

ПК66-160

510548

П1498-74

ПК66-163

510549

П1498-76

ПК70-23

510550

П1498-78

ПС3-105, ЭН766

510552

-

ПК19378

510553

-

ПК4635

510554

-

ПК4815

510555

-

ПК18894, С2014

510556

-

ПК18387, С1940

510557

-

С2269

510558

-

ПК18981

510560

-

ПК18576-1

510561

-

ПК18576-2

510563

-

ПК18577-2

510564

-

ПК18570

510601

-

ПК14995-2

510602

П1504-4

НП288-1, ПК66-102

510603

П1504-6

ПК70-17, ПС3-122

510604

-

ПК14995-1

510605

П1504-8

НП29-7, ПП22-36, ПС3-1

510606

-

ПК17377

510607

-

ПК17376

510608

П1504-9

ПС3-139

510609

П1504-11

ПК13628, ПС3-140

510610

-

ПК14745

510611

-

ПК17737

510612

-

ПК14953

510613

П1498-6

ПС3-123, ПК70-18

510614

-

ПК14740

510615

П1504-10

ПС3-96, ЭН684

510616

П1504-12

ПС3-101, ЭН749

510617

П1504-14

ПК66-150, ПС3-118

510618

П1504-15

ПК13332

510619

П1504-16

НП80-1, ПК66-3, НП20-1, ПС3-3

510620

П1504-18

Н754-Е3, ПК66-46, ПС3-52, НП88-3

510621

П1504-20

С376, ПС3-2, ПК66-2, НП21-1 ПП22-25, ПК66-169, НП79-1

510622

П1504-22

ПР211-2, ПК70-14, ПП133-14

510623

П1504-24

ПК66-86, ПС3-134, НП29-6

510624

П1504-26

ПК66-106, ПП22-37

510625

П1504-28

ПК66-107, С1067, НП22-26

510626

П1504-30

Н754-Е5, НП88-5, ПС3-53, ПК66-47, ПС3-4

510627

П1504-32

ПР211-3, ПП22-19

510628

П1504-34

ПК66-65, ПС3-74, ПП22-6

510629

П1504-36

С1020, ПП22-4, ПС3-29, ПК66-24

510630

П1504-38

ПК66-16, ПП22-5, ПС3-20

510631

П1504-40

ПП340-1

П1504-42

ПС3-31

510632

П1504-44

ПС3-115

510633

П1504-46

ПК66-28, ПС3-33, НП81-1

510634

П1504-48

ПС3-87, ПК132, ЗН590

510635

П1504-50, П1504-52

ПП340-2, ПС3-32, ПК66-27

510636

П1504-54

ПП22-13

510637

П1504-55

АПР227

510638

П1504-56

ПС3-84, ПК131, ЭН550

510639

-

ПК17695

510640

П1504-58

ПК66-82, НП9-2

510641

П1504-60

С60-1, ПП22-54

510642

-

ПК16046

510643

П1504-62

ПК66-173

510644

П1504-64

С350, ПК66-159, С336, ПК42-89

510645

П1504-66

ПК66-59, ПС3-68

510646

П1504-68

Б-1, ПК66-77

510647

Р1504-70

ПК66-84, НП29-4

510648

П1504-72

ПС3-83, ПК66-108

510649

П1504-74

ПП22-42

510650

-

С1181-9

510651

П1504-76

ПК66-110, ПП22-41

510652

П1504-78

ПС3-5

510653

П1504-80

С1197, ПС3-6, ПК66-6

510654

П1504-82

ПС3-42, ПК66-37

510655

П1504-84

ПК66-111, ПП22-40

510656

-

С1155-3

510657

П1504-85

С724

510658

П1504-86

ПК66-83, ПП22-47, НП29-3

510659

П1504-88

С15, ПК66-112

510660

П1504-90

ПК66-113, ПП22-29, ПС3136

510661

-

С1322, ПК15237

510662

П1504-92

ПК42-86, С325

510663

П1504-94

ПК66-114, ПП22-38

510664

П1504-96

ПР211-4, ПП22-21

510665

П1504-98

ПС3-72, ПК66-63, Н4049-Е37

510666

П1504-100

ПК66-74, ПК66-170, Н754-Е16

510667

П1504-102

ПК66-70, Н791-Е23, ПП22-48, ПС3-95

510668

П1504-104

ПР211-5

510669

П1504-106

ПР211-6, ПП22-33, ПС3-21

510670

П1504-108

ПК66-18, ПВ1537, ПС3-22, ПП64-1

510671

П1504-110

Н754-Е9, НП88-9, ПК66-49, ПС3-55

510672

П1504-112

ПС3-107, ПП22-53

510673

П1504-114

С152-3

510674

П1504-116

С152-7

510675

П1504-117

ПК12889

510676

П1504-118

ПК66-88, ПП22-1

510677

П1504-120

ПК66-104, ЭН599, ПС3-88

510678

П1504-121

ПК0846

510679

П1504-122

ПК66-54, ПС3-62

510680

П1504-124

ПС3-63, ПК66-55

510681

-

ПК15395, С1349-2

510682

П1504-126

С1000, ПК66-67, ПС3-76

510683

П1504-128

ПК66-128, ПС3-94

510684

П1504-130

ПК66-105, ПС3-89, ЭН559

510685

П1504-131

ПК13629-2, ПС3-142

510686

П1504-133

ПС3-143, ПК13629-3

510687

П1504-135

ПС3-141, ПК13629-1

510688

П1504-132

ПК42-104

510689

-

С1181-10

510690

П1504-134

ПС3-8

510691

П1625

ПК11512

510692

-

ПК17609

510693

П1504-136

ПК66-29, ПС3-34

510694

П1504-138

ПС3-77, ПК66-121

510695

П1504-140

ПС3-79, ПК66-122

510696

П1504-142

ПП22-10

510697

П1623

ПК11517

510698

-

НП1220-1, С1181-8

510699

П1504-144

ПК66-81, ПН29-1

510700

П1504-146

ПК66-85, НП29-5

510701

-

С1181-7

510702

П1504-148

ПК66-152

510703

П1504-150

ПК49-7/1

510704

-

С1181-11

510705

П1504-152

ПК49-7/2

510706

-

С1269, ПК15125-1

510707

-

С1181-5, ПК3136

510708

П1504-154

ПК95-6, С455-6

510709

П1504-156

ПК13093, ПК95-8

510710

П1504-158

С149

510711

П1504-160

ПК66-140

510712

П1504-162

ПК66-139

510713

П1504-164

ПК66-138

510714

-

ПВ1442, ПК14598

510715

П1504-166

ПК66-154

510716

П1504-168

ПК66-177

510717

П1504-170

ПК9658

510718

-

С1179-1

510719

-

ПК15993

510720

П1504-171

ПК14022

510721

П1504-172

ПП22-14, ПК66-93

510722

-

С1317, ПК15178

510723

-

С1142, ПК14480

510724

П1504-174

ПР211-7, ПК66-96, ПП22-16

510725

П1504-176

С114-1

510726

П1504-178

Б-6, ПП22-15

510727

-

ПК66-94

510728

П1504-180

Б-5, ПП22-20, ПС3-23, ПР211-8

510729

П1504-182

С114-2

510730

П1504-184

Б-4, Н754-Е20, ПК66-76, ПП22-27, ПС3-127

510731

П1504-186

С114-3

510732

П1504-188

С114-4

510733

-

ПК13753

510734

П1504-190

ПК66-124, ПП22-28

510735

П1504-191

ПК66-190

510736

-

С1181-1

510737

П1504-192

ПК66-178

510738

П1504-194

ПК66-7, ПС3-11

510739

П1504-196

ПК66-48, Н754-Е7, ПС3-54, НП88-7

510740

П1504-198

ПК66-97, ПР211-9, ПП22-17

510741

-

ПК13750

510742

П1504-200

ПК66-75, Н754-Е19

510743

П1504-202

ПК66-125, НП252-1

510744

-

С1106-2

510745

П1504-204

ПС3-114, ЭН-711

510746

П1504-208

ПП133-9, ПС3-7

510747

П1504-210

ПС3-59

510748

П1504-212

ПП133-17

510749

-

ПК15119-1, С1259-1

510750

П1504-213

ПК12185

510751

П1504-214

ПК66-153

510752

П1504-215

НП684-1

510753

-

ПК134-3, ПН-167

510754

П1504-218

ПП133-15

510755

П1504-220

ПП22-12, ПК66-91

510756

П1504-221

ПК12247, С456-23

510757

П1504-222

С725, Б7103-11А1

510758

П1504-223

ПП133-16

510759

П1504-224

ПС3-102, ЭН-750

510760

П1504-226

ПК69-3

510761

П1504-228

ПС3-85, ПК137, ЭН-572

510762

-

ПК17694

510763

П1504-230

ПК9094

510764

П1504-231

ПК1-111

510765

П1504-232

С306, ПК66-149

510766

П1504-233

ПК12989

510767

П1504-234

ПК66-176

510768

П1504-235

ПК0813

510769

П1504-237

ПК1-114

510770

П1504-236

ПК9179

510771

П1504-239

С875, ПК13035

510772

П1504-238

С718, ПК66-8, ПС3-12

510773

П1504-240

С951, ПС3-130, ПК125-3

510775

П1504-241

ПК13504

510776

П1504-243

ПК13276

510777

П1504-242

ПС3-48, ПК66-42

510778

П1504-245

ПК13277

510779

П1504-244

ПК66-9, ПК22-8, ПС3-13

510780

П1504-246

ПК66-115, ПП22-30

510781

П1504-248

ПК66-116, ПП22-31

510782

П1504-249

ПК13550

510783

П1504-250

ПК66-127, ПК3-93

510784

-

С1651-2, ПК16794

510785

-

С1651-1, ПК16793

510786

П1504-252

С152-4

510787

П1504-254

С152-5, НП1841

510788

П1504-256

С152-6

510789

П1504-258

С152-8

510790

П1504-259

ПК13208-1

510791

П1504-261

ПК13208-2

510792

-

ПК16400

510793

П1504-260

ПС3-86, ПК138, ЭН583

510794

П1504-262

ПК0485

510795

-

01181-13

510796

-

С1181-6

510797

П1504-264

НП504-1, ПК66-45, ПС3-51, НП242-1, Н790-Б10

510798

-

ПК0871

510799

П1504-266

ПС3-90, ПК66-128, Н791-Е21, ПК66-68

510800

-

ПК13752

510801

-

С1604-3

510802

П1504-268

ПС3-69

510803

П1504-270

ПП22-7, ПК66-23

510804

П1504-272

ПС3-57, ПК60-50, ПС3-28

510805

П1504-274

ПК66-95, ПС3-80, ПП22-18

510806

П1504-276

ПС3-15, ПК66-11

510807

П1504-278

ПП133-7, ПС3-9

510808

П1504-280

ПК0482

510809

-

С1181-2

510810

П1504-282

НП258-1, ПК130

510811

П1504-290

ПК66-126, ПП22-32

510812

П1504-292

ПК95-5, С455-4

510813

П1504-294

С624

510814

-

С1480, ПК16156

510815

-

С1181-14

510816

П1504-296

ПК66-175

510817

П1504-297

ПС3-132, ПК11795

510818

П1504-299

ПК14169

510819

П1504-301

С895, ПК13008

510820

П1504-298

ПК66-80, Б96, ПП22-49, С2142-52

510821

П1504-300

ПК2563, С114-5

510822

П1504-303

ПК14170

510823

-

С1181-4

510824

П1504-302

С114-6, ПК2366

510825

П1504-304

С114-7, ПК4070

510827

-

ПК13747

510828

П1504-308

С152-1, НП1857

510829

П1504-310

НП192-1, ПС3-44, ПК66-38

510830

П1504-312

С152-2

510831

П1504-314

ПК9100

510832

П1504-316

ПК125-2

510835

П1504-320

С411-1, НП1874

510836

-

ПК15757

510837

П1504-322

С411-4

510838

П1504-318

ПК9370

510839

П1504-324

ПС3-121, НП1912

510840

П1504-326

ПК66-25, ПП22-3, ПС3-30

510841

-

ПК18158

510842

-

ПК16341, С1589

510843

П1504-328

ПК66-185, ПК66-17

510844

П1504-332

ПС3-39, ПК66-34, НП158-1

510845

П1504-340

ПС3-40, ПК66-35, НП158-2

510846

П1504-344

ПК66-12, ПС3-16

510847

П1504-346

ПК66-123, ПС3-138, ПП22-43

510848

-

С1181-12

510849

-

ПК66-186

510850

П1504-348

ПК66-146

510851

П1504-350

С672, ПК66-184

510852

П1504-352

С455-5

510853

П1504-353

ПК66-189

510854

-

ПК15852

510855

П1504-354

ПК69-2

510856

П1504-356

ПК94-3, ПН-126

510857

П1504-358

ПС3-82, ПК66-129

510858

П1504-360

ПС3-106

510859

П1504-362

ПК66-56, ПС3-64

510860

П1504-364

ПК66-179, ПН-187

510861

П1504-366

ПК83-2

510862

П1504-368

С60-3, ПК66-130

510863

-

С1650-4, ПК16796

510864

-

С1650-1, ПК16792

510865

-

С1650-3, ПК16795

510866

-

С1650-2, ПК16792

510867

П1504-370

ПК66-174

510868

П1504-371

ПК66-191, ПК66-187

510869

-

ПК15740-1

510870

П1504-373

ПК66-188

510871

-

ПК16505

510872

П1504-372

ПС3-113, С1192

510873

П1504-375

ПК1-112

510874

П1504-377

ПК12708

510875

П1504-374

ПК83-1

510876

-

ПК49-6

510877

-

С1545, ПК16369

510878

-

ПК17423

510880

П1504-376

Б-164, С0205-26

510881

П1504-378

ПС3-125, ПК66-155

510882

П1504-380

ПС3-50, ПК11547, ПК66-44, Н790-Е12, НП242-3

510883

П1504-381

ПК12484

510884

П1504-382

Б-8

510885

-

С1106-1

510886

П1504-384

ПС3-98, ЭН695

510887

-

ПК18012, ПК17937

510888

П1504-386

ПК66-172

510889

П1504-388

ПК66-147

510890

-

ПК15125-2

510891

-

С1349-1

510892

П1504-390

ПК95-7, С455-2, ПВ1347, ПК95-7А

510893

-

С1181-3

510894

П1504-392

ПК66-142

510895

П1504-394

ПК66-143

510896

П1504-396

С60-2, ПП22-50, ПК66-132

510897

П1504-397

ПК11949

510898

-

ПК16138

510899

П1504-398

ПК66-141

510900

П1504-400

ПК66-145

510901

П1504-404

ПК66-131

510902

П1504-413

ПК12028

510903

П1504-406

ПК66-144

510904

-

ПК15740-2

510905

-

ПК17782

510906

П1504-408

НП554-1

510907

-

ПК16855

510908

-

ПК13751

510909

-

С1604-5

510910

П1504-410

С114-8

510911

П1504-412

С114-9

510912

П1504-414

С114-10

510914

П1504-416

ПР211-10, ПП22-22

510915

П1504-418

ПК14176, ПР211-11, ПК66-101, ПП22-23

510916

-

ПК15899

510917

П1504-420

ПС3-91, ПК66-133

510918

П1504-422

С644, ПК11429

510919

П1504-424

С126

510920

-

С1179-2

510921

П1504-426

ПК66-33, ПС3-38

510922

П1504-427

ПК0687

510923

П1504-428

ПС3-71, ПК66-62

510924

П1504-430

ПК91-2

510925

П1504-429

ПК0735-1

510926

П1504-431

ПК0735-2, НП808-1

510928

-

ПК14580

510929

П1504-432

ПП133-8, ПС3-10

510930

П1504-434

ПК44-8

510931

-

ПК15289

510932

П1504-435

ПК14164

510933

П1504-436

ПК66-13, ПС3-17

510934

-

С1479, ПК16155

510935

П1504-437

ПК13251

510936

-

С1130-2, ПК14412

510937

-

С1130-1, ПК14412

510938

П1504-438

ПС3-66, ПК66-57

510940

П1504-440

ПК66-117, ПП22-45

510941

П1504-441

ПК66-194

510942

-

С1181-15

510943

-

ПК14581

510944

П1504-443

С753, ПС3-24, ПК66-20

510945

П1504-442

С533, ПК42-100

510946

П1504-445

ПК134-6

510947

П1504-447

ПК2-254, ПС3-128

510948

-

С1415, ПК15707

510949

-

ПК15125-3

510950

П1504-444

ПС3-81, ПК66-135

510951

-

ПП22-24

510952

-

С1183-1, ПК15122

510953

П1504-446

ПК11195, ЭАН-820

510954

П1504-449

ПК11186

510955

П1504-448

ПС3-73

510956

П1504-450

ПП133-22

510957

П1504-452

ПС3-47, ПК66-41, НП171-2

510958

-

ПК14075

510959

-

ПК18008

510960

П1504-454

ПП22-33, ПК66-118

510961

П1504-456

С74, ЭН-549

510962

-

ПК01091

510963

П1504-457

С751, ПК11986

510964

П1504-458

ПК0901119

510965

П1504-460

ПК42-103

510966

-

С1585, ПК16394

510967

П1504-462

С455-7

510968

-

ПК13694

510969

-

С1525, ПК16259

510970

П1504-464

С415, ПК9502

510971

-

ПК16243

510972

-

С1586, ПК16395

510973

-

ПК18065

510974

П1504-468

НП1955, С114-11

510975

-

ПК16927

510976

П1504-469

ПК12304

510977

-

ПК13749

510978

-

С1183-2

510979

-

ПК14750

510980

П1504-471

НП868-1

510981

-

С1145, ПК14483

510982

-

ПК18003

510984

П1504-473

С823

510985

П1504-470

ПК94-4

510986

-

ПК18320

510987

-

С1508, ПК16013

510988

П1504-472

С898, ПК66-32, ПС3-37

510989

П1504-474

ПК94-2, ПН-110

510990

П1504-476

ПК52-2

510991

П1504-478

ПК66-151

510992

П1504-480

ПК70-20

510993

-

С1238

510994

П1504-482

С685, ПК11569

510995

-

ПК16158, С1482

510996

П1504-484

ПК11184

510997

П1504-485

ПК12700

510998

П1504-486

С456-12

510999

П1504-488

ПК0901118

511000

-

ПК13696

511001

-

ПК14135

511002

П1504-490

ПК66-36, С1391, ПС3-41

511003

-

С1544, ПК16368

511004

П1504-492

ПК66-10, ПП222, ПС3-14

511005

П1504-494

ПК66-90, ПП22-11

511006

П1504-496

ПК0688, ПК41-3

511007

П1504-498

ПС3-67, ПК66-58

511008

П1504-500

ПС3-100, ЭН739

511009

П1504-501

ПК12097

511010

-

ПК16468

511011

П1504-502

ПК0196

511012

П1504-504

ПК11155

511013

П1504-505

С1555, С456-16

511014

П1504-507

ПК9707, ЭН1097

511015

-

ПК14081

511016

П1504-509

ПВ1059, ПК12303

511017

-

ПК12435

511018

-

ПК12430

511019

-

ПК12431

511020

-

ПК12429

511021

-

ПК12703

511022

П1504-511

ПК12703

511023

П1504-513

ПК12710

511024

-

ПК18308

511025

-

ПК17684

511026

П1504-506

С580, ПК111145

511027

П1504-508

ПС3-97, ЭН694

511028

П1504-510

ПС3-58, ПК66-51

511029

-

ПК17106-1

511030

-

С1648, ПК16372

511031

-

С1604-7

511032

П1504-512

С1046, ПК66-30, ПС3-35

511033

-

ПК17186А

511034

П1504-514

ПК66-134, ПП22-29, ПС3-137

511035

-

ПК13748

511036

-

ПК16595

511037

П1504-516

ПС3-112

511038

П1504-518

ПК2-303

511039

П1504-520

С447-3

511040

П1504-522

С447-4

511041

-

ПК15747

511042

П1504-515

ПК0735-3

511043

П1504-524

ПК202-3, ЭАН-560

511044

П1504-525

ПК12902

511045

-

С1523, ПК16257

511046

П1504-526

ПК66-136, ПП22-46

511047

-

ПК16926

511048

П1504-527

ПК0863

511050

П1504-528

ПК66-14, ПС3-18

511051

П1504-530

ПК66-161, ПН-172

511062

П1504-532

С535-2, ПК68-4

511053

П1504-534

С535-1, ПК68-3

511054

-

ПК17610

511055

П1504-536

С459, ПК70-25

511056

П1504-538

С1068, ПК66-66, ПС3-75

511057

П1504-540

ПС3-103, ЭН-763

511058

П1504-541

ПК0810

511059

П1504-542

ПК66-119, ПП22-34

511060

П1504-544

ПК66-43, ПС3-49

511061

П1504-545

С955, ПС3-131, ПК11668

511062

П1504-546

С1556, ПП22-51, НП1690

511063

-

ПК14868

511064

П1504-547

ПК12538

511065

П1504-548

С455-6

511066

П1504-550

ПС3-104, ЭН765

511067

П1504-552

ПС3-99, ЭН712

511068

П1504-554

ПК66-31, ПС3-36

511069

П1504-556

ПС3-60, ПК66-52, НП309-1

511070

П1504-558

С686, ПК11570

511071

П1504-560

ПС3-117, ПК66-69, Н791-Е22

511072

-

ПК2-268, ПН150

511073

П1504-561

ПК12763

511074

П1504-563

ПК12536

511076

П1504-562

ПК69-1

511076

П1504-565

ПК12554

511077

-

ПК17064

511078

П1504-567

ПК0735-4

511079

П1504-564

С905, ПК66-137, НП389-1

511080

-

С1401, ПК15653

511081

П1504-566

ПК66-15, ПП22-9, ПС3-19

511082

-

ПК17798-1

511083

-

ПК17798-2

511084

П1504-568

ПК66-61, ПС3-70

511085

П1504-570

ПС3-61, ПК66-53, НП309-2

511086

-

ПК15368

511087

П1504-572

С456-14

511088

П1504-574

ПК70-5, ПП133-5, ПС3-26

511089

П1504-576

ПП133-6, ПС3-27

511090

П1504-578

НП358-1, ПА112, ПС3-133, ПК153

511091

-

ПК14602

511092

П1504-580

ПВ1165, ПК66-21

511093

П1504-582

ПС3-92, ЭН619

511094

-

ПК17270

511096

-

ПК18999

511096

-

ПК2867

511097

-

ПК19345-1

511098

-

ПК19839

511099

-

ПК19823

511100

-

ПК4636

511101

-

ПК18662

511102

-

ПК2592

511103

-

ПК19374

511105

-

ПК3153

511106

-

ПК18678

511107

-

С2092, ПК19342

511108

-

ПК4622

511109

-

ПК4725

511110

-

С2196, ПК7037

511111

-

ПК4628

511112

-

ПК18290

511113

-

ПК8326

511115

-

ПК4627

511116

-

С1857

511117

-

ПК18483

511118

-

ПК19221-1

511119

-

ПК19221-2

511120

-

ПК20001

511121

-

ПК19556

511122

-

С1822, ПК17674

511123

-

ПК18748

511124

-

ПК17254-1

511125

-

ПК2456

511126

-

ПК18536

511127

-

ПК17106-2

511128

-

С1808, ПК17640

511129

-

ПК2023

511130

-

С1809, ПК17641

511131

-

ПК19415

511132

-

ПК18748

511133

-

ПК8318

511134

-

ПК20049

511135

-

ПК20048

511136

-

ПК8015

511137

-

ПК18676

511138

-

ПК2455

511139

-

ПК13353

511140

-

ПК13346

511141

-

ПК4623

511142

-

С1790, ПК17619

511144

-

ПК18737

511145

-

ПК18376

511146

-

С1753, ПК17412

511147

-

ПК2940

511148

-

ПК2646

511149

-

ПК2569-2

511150

-

ПК19554

511151

-

ПК18490

511152

-

ПК17920

511153

-

ПК2854

511154

-

ПК8689

511155

-

ПК2576

511156

-

ПК2569-1

511157

-

С1715, ПК17156

511158

-

ПК2106

511159

-

ПК2068

511160

-

ПК17924-1, С1877-1

511161

-

ПК17924-2, С1877-2

511162

-

ПК18340

511163

-

ПК4862

511164

-

ПК4739

511165

-

ПК19356

511167

-

ПК94-4-1

511168

-

ПК3221

511169

-

ПК18421-1

511170

-

ПК18421-2

511171

-

ПК18934

511173

-

ПС1081

511174

-

ПК4685

511175

-

ПК3007

511176

-

С1742, ПК17288

511177

-

С1892, ПК17964

511181

-

ПК18287

511182

-

ПК4220

511183

-

ПК4222

511184

-

ПК4230

511211

-

ПК4231

511213

-

ПК4248

511214

-

ПК4108

511215

-

ПК4355

511216

-

ПК4501

511217

-

ПК4411

511238

-

ПК4518

ИНФОРМАЦИОННЫЕ ДАННЫЕ

1. РАЗРАБОТАН И ВНЕСЕН ТК 297 «Материалы и полуфабрикаты из легких и специальных сплавов»

РАЗРАБОТЧИКИ:

Г.С. Макаров, В.К. Николаев, В.В. Илларионова

2. УТВЕРЖДЕН и ВВЕДЕН В ДЕЙСТВИЕ Постановлением Госстандарта России от 30.07.92 № 821

3. ВВЕДЕН ВПЕРВЫЕ

4. Периодичность проверки 10 лет

5. ССЫЛОЧНЫЕ НОРМАТИВНО-ТЕХНИЧЕСКИЕ ДОКУМЕНТЫ

Обозначение НТД, на который дана ссылка

Номер пункта

ГОСТ 8617-81

2

ГОСТ 19657-84

2







© 2013 Ёшкин Кот :-)
